- Location:
16250 E 40th Ave Aurora, CO 80011
- Project Type: Retrofit-Replacement
- Project Status: Completed
- Products Used: Kingspan L+A, Polycarbonate Skylight, QuadSpan
- General Contractor: Trainor Management, Inc.
Available for work in Colorado and Coast to Coast — It all starts with a simple phone call.

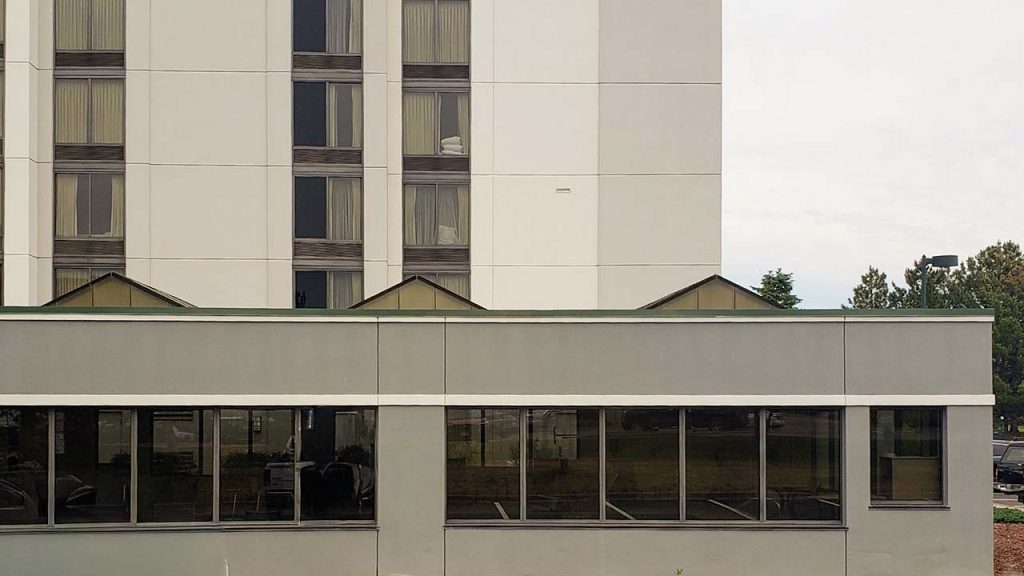

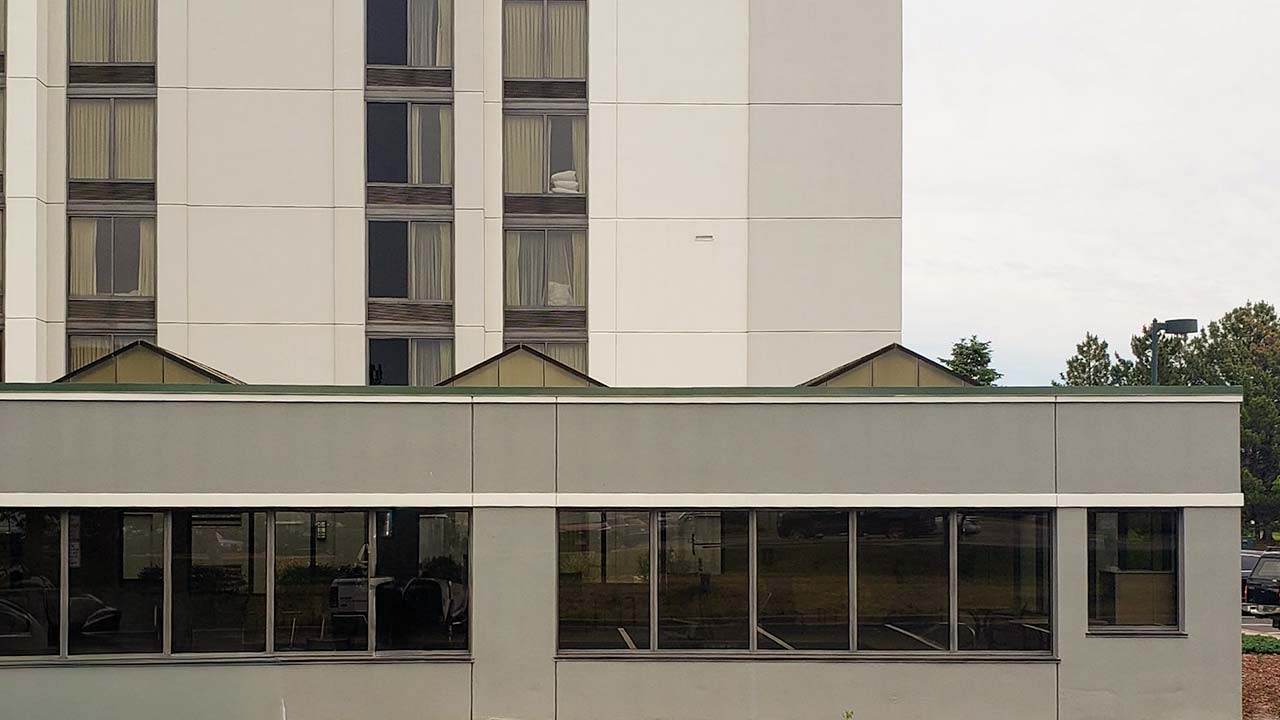

Hail Damaged and Yellowed Ridge Skylights Are Replaced.
The Problems:

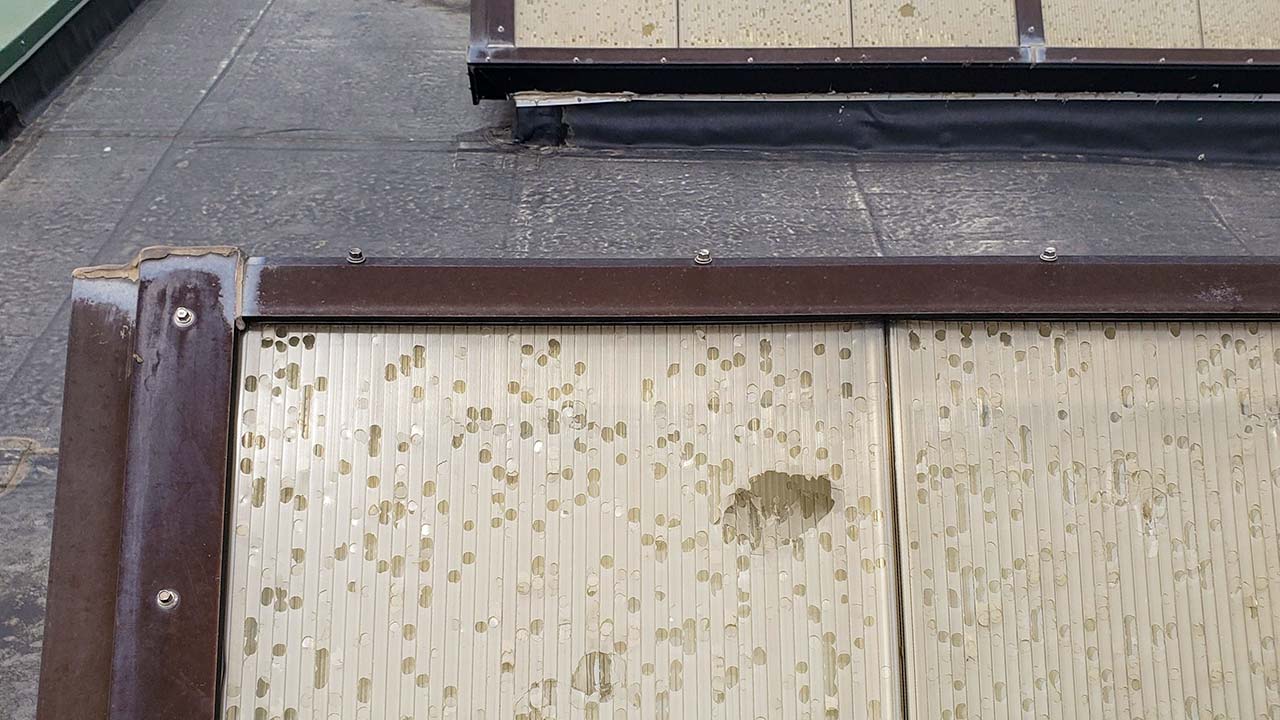

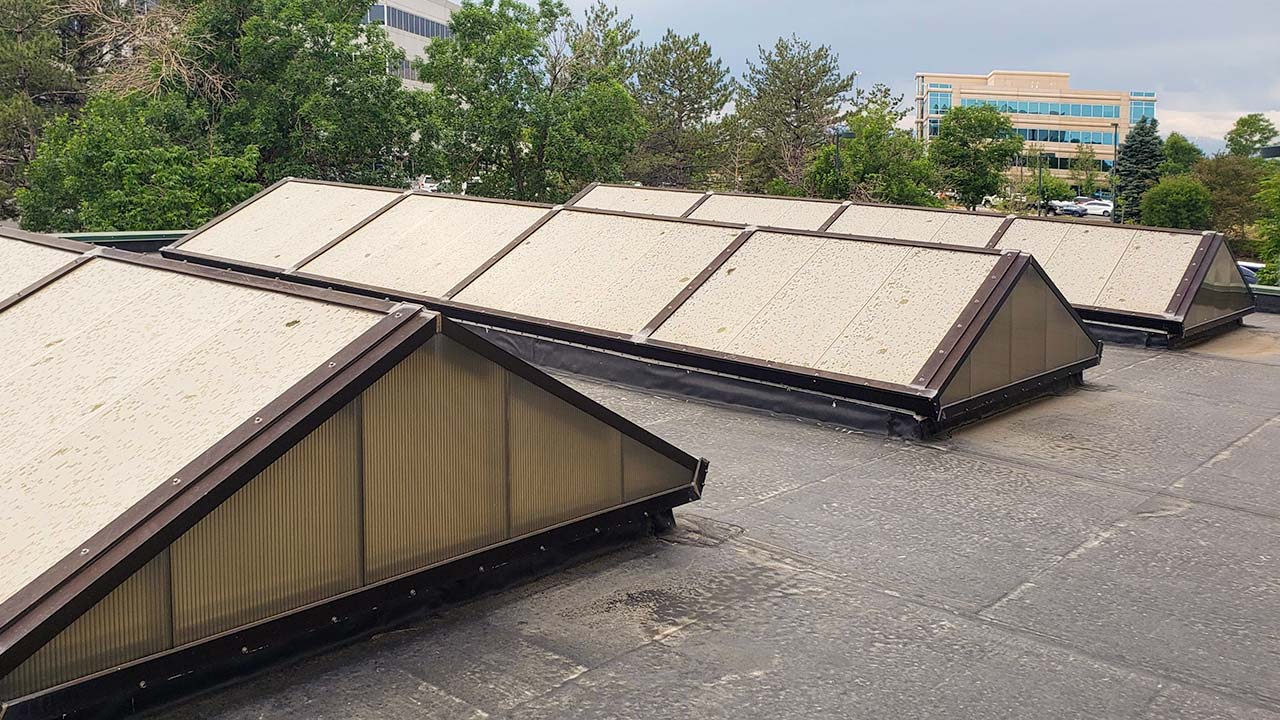

The skylights have suffered from UV Rays and from hail stones. Fortunately, the existing system had multi-wall glazing preventing damage into the interior.
Aged and yellowed skylights are worse than having no skylights. The light is depressing and unnatural to the guests below.
The Solutions:

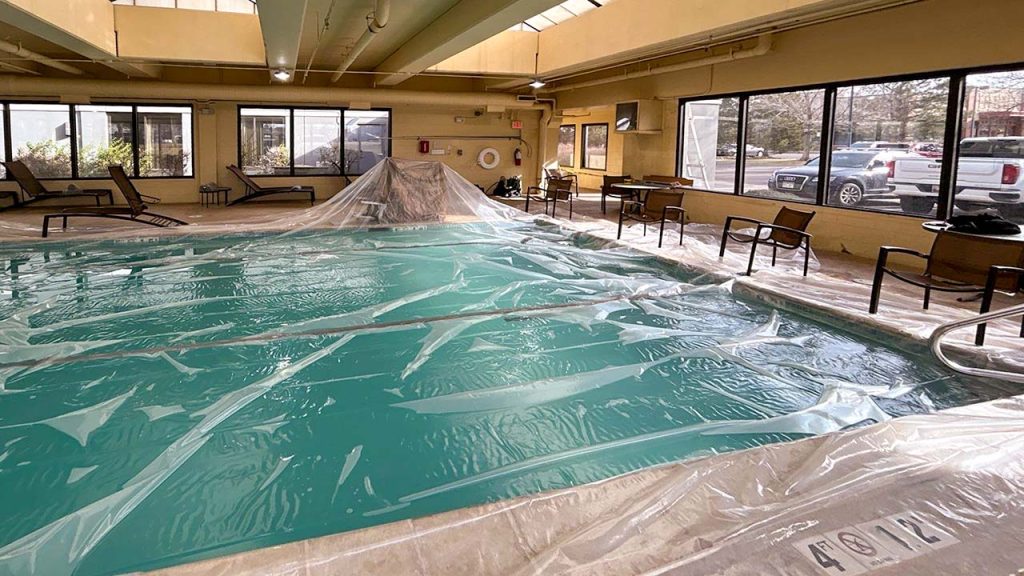

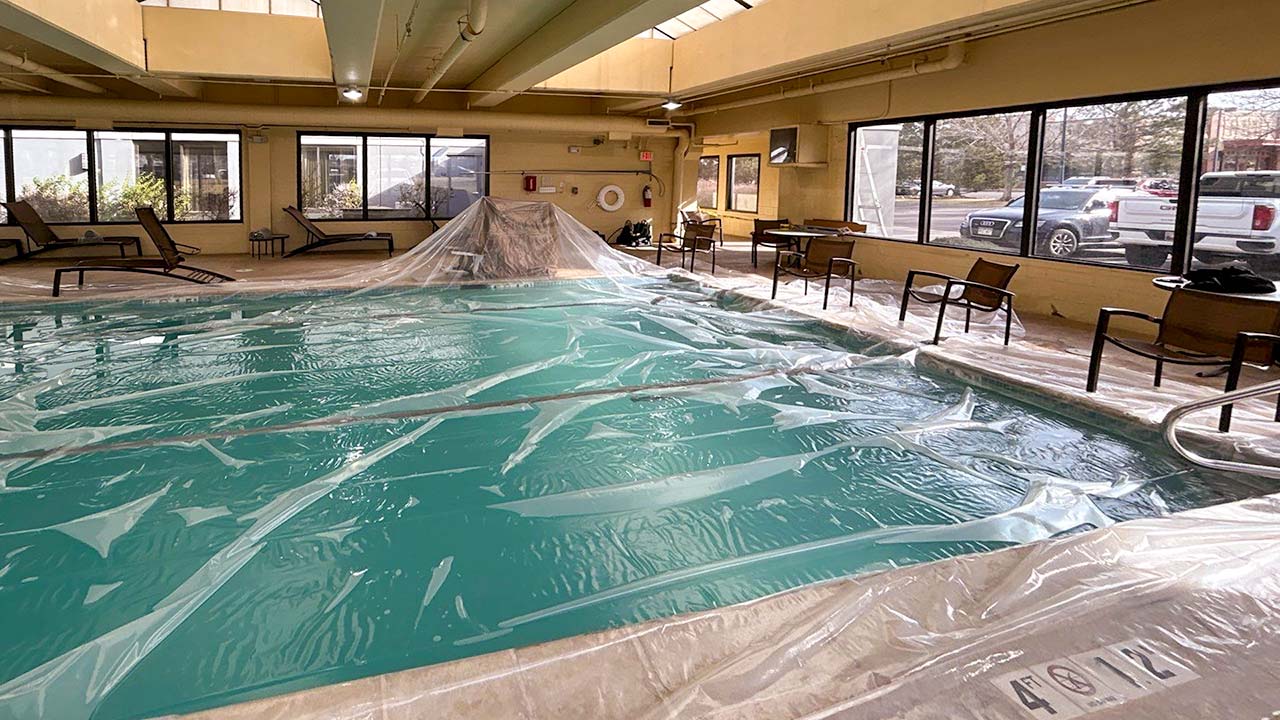

We did not want any issues with small debris in the pool. It is much easier and safer to cover the pool temporarily as we perform the demolition of the old skylight.

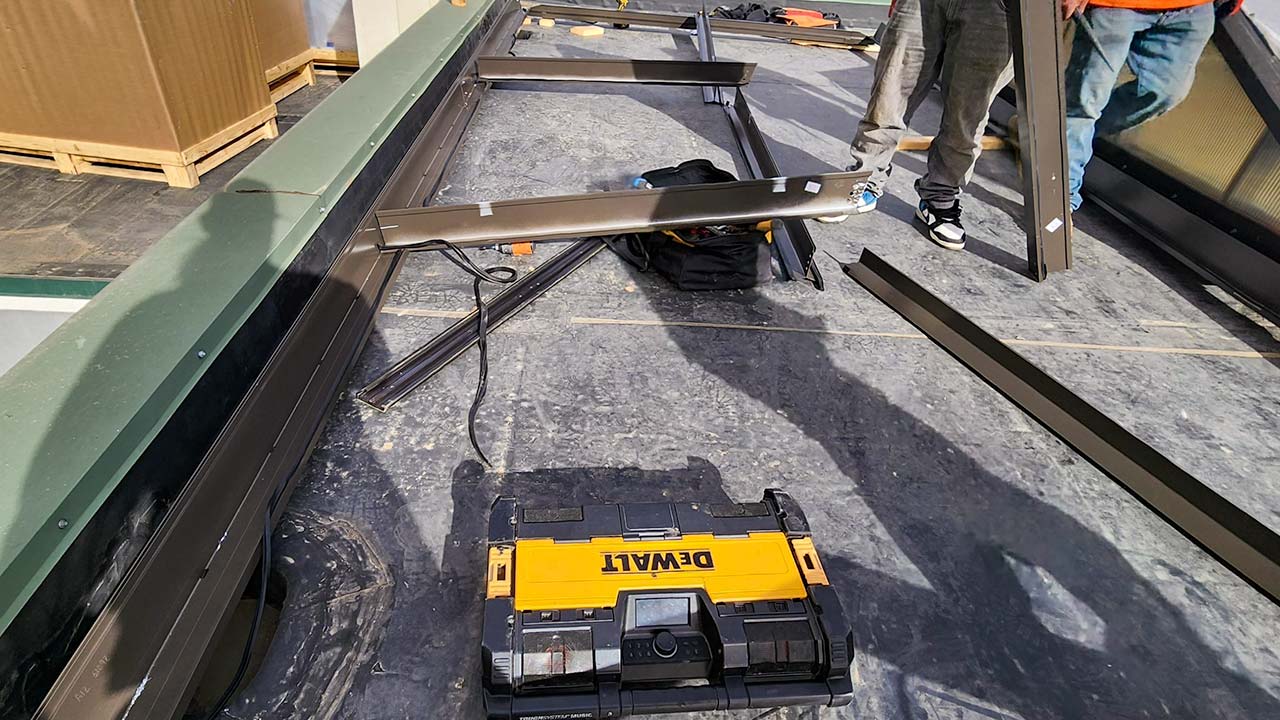

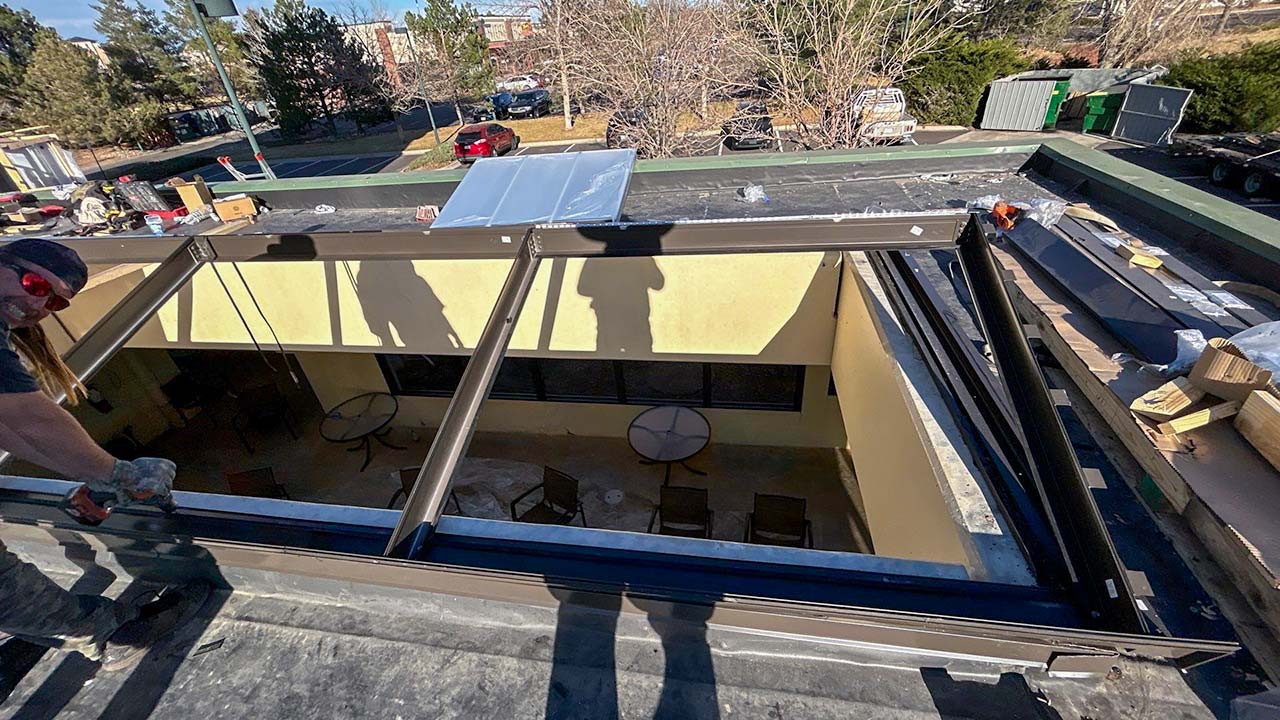

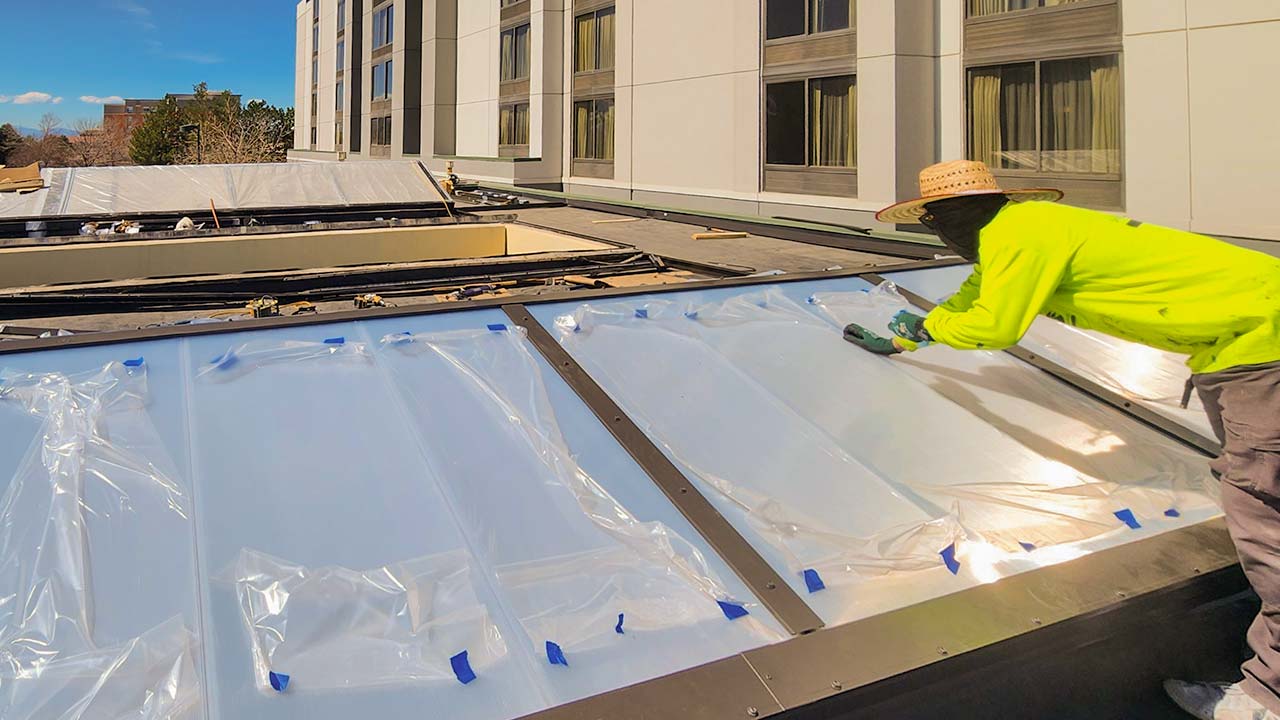

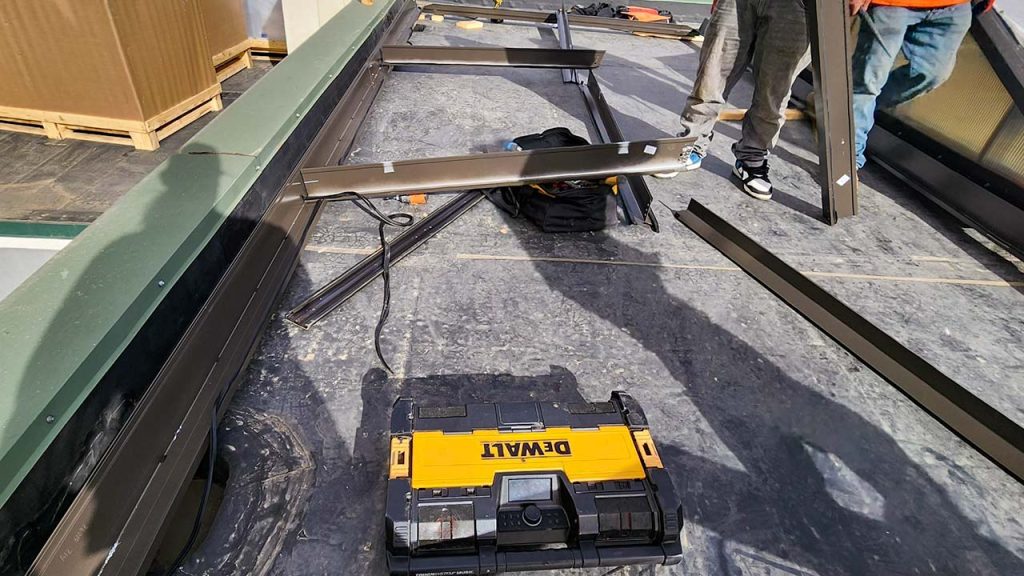

New skylight frames are pre-assembled on the roof prior to demolition allowing for as little exposure time as possible.

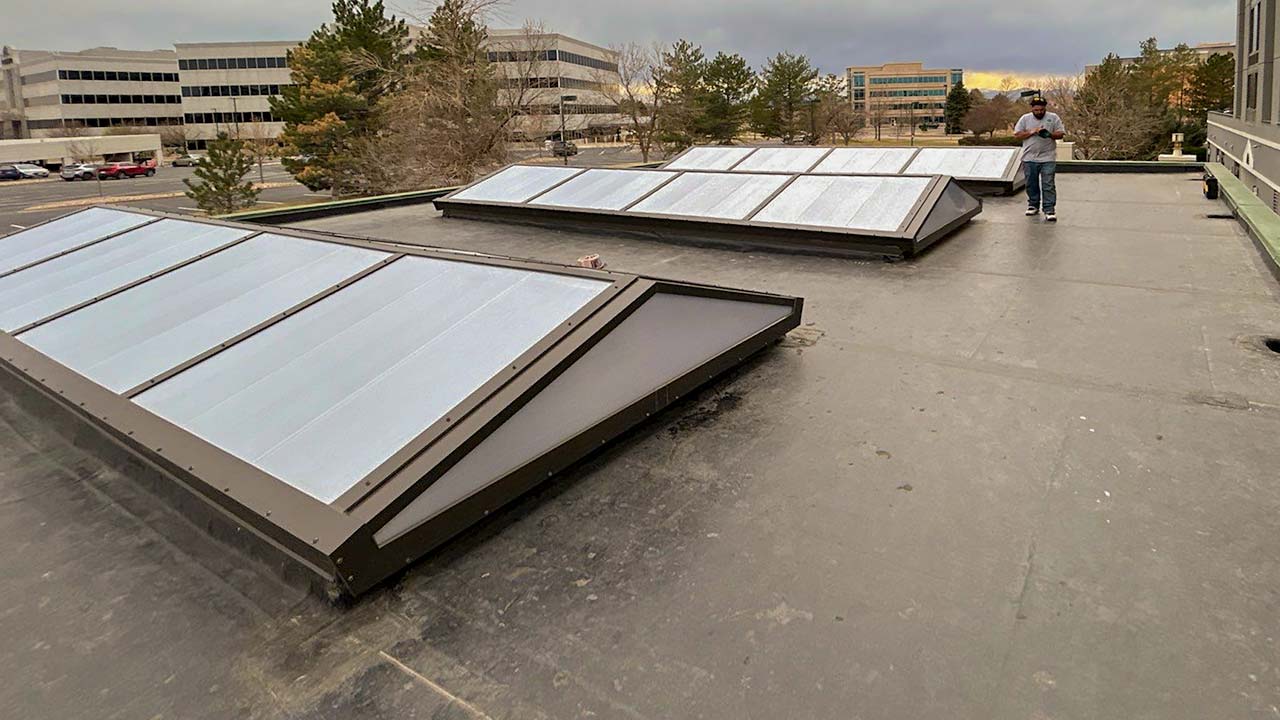

Before and After

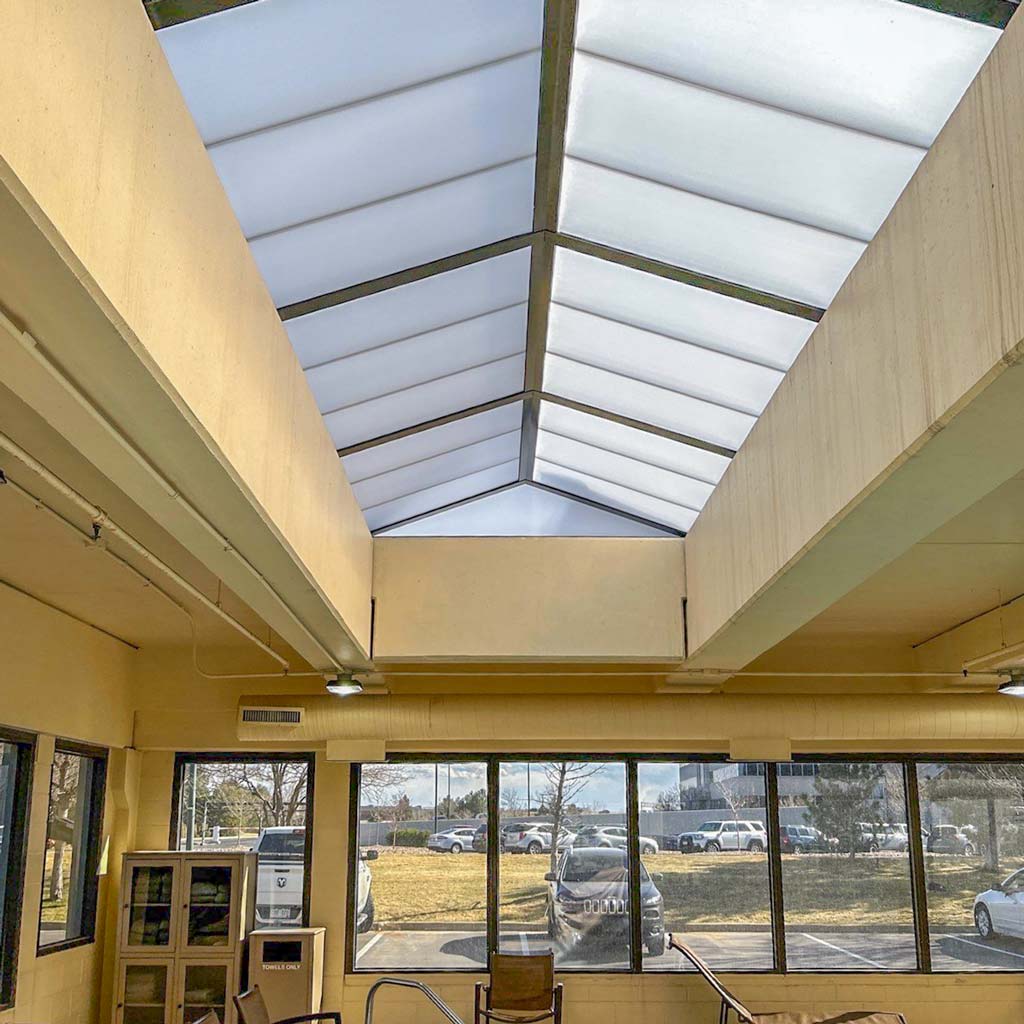

The difference to the quality of light is drastic. No longer saturated with yellow light the natural daylight look feels more open and inviting tot he space below. It is an uplifting feeling!
Product used:
Kingspan L+A (3) unit(s)-4”QuadSpan™ RIDGE 8.83′ wide x 24.00′ long odc. 4.65′ on slope odc. 709 sq. ft.
RST – Removable Skin Technology
- REPLACE exterior glazing panel without exposing the building’s interior.
- EXTEND building envelope longevity. The interior panel is always shielded.
- RAINSCREEN PRINCIPLE – Equilibrium of air pressure between the outside and inside of the “rainscreen” prevents water penetration into the building itself.
- ENERGY EFFICIENT – Provides the best ratio of insulation (U-Factor) to visual transmittance (VT%).
- HIGH PERFORMANCE DAYLIGHTING – Glare-free diffused daylighting.
ADDITIONAL INFORMATION:
QuadSpan™ two panel translucent skylights diffuse sunlight, provide excellent thermal performance, and are significantly lighter than traditional glass systems. Glazing panels are pre-assembled for easy installation and can span long distances, allowing for a clean look with less visible exterior framing. QuadSpan™ (formerly Quadwall) is available in a variety of configurations, is custom designed to fit your project’s needs, and is a great choice for new construction and renovation.
