The fiberglass skylight has deteriorated to the point that a replacement is necessitated.

An image of the exterior of the Clark County Water Reclamation District failed fiberglass skylight
Yellowing is evident with the fiberglass skylight
An image from the interior of the Clark County Water Reclamation District failed fiberglass skylight
Clark County Water Reclamation District failed fiberglass skylight.

Skylight Specialists furnished and installed a Kingspan Light + Air Structural Half Round Vault Skylight.

The KLA skylight is shipped in crates containing all necessary components to assemble the half round barrel vault.

Once assembled the yellowed skylight is demoed and removed. A crane lifts and sets the it new skylight in place and it attached to the curb.place.

Safety was a concern.

The Safety Plan was required to be emailed to the contractor.
The supervisor/foreman must attend all meetings & inspections or there is a $250 fine.
Before & after every shift, the Daily Report & Sign In Report was be submitted by 5pm.

Two technicians sit at a conference table in a wood-paneled room. A wall-mounted screen displays a slide about air quality. The setting conveys a professional, focused atmosphere.

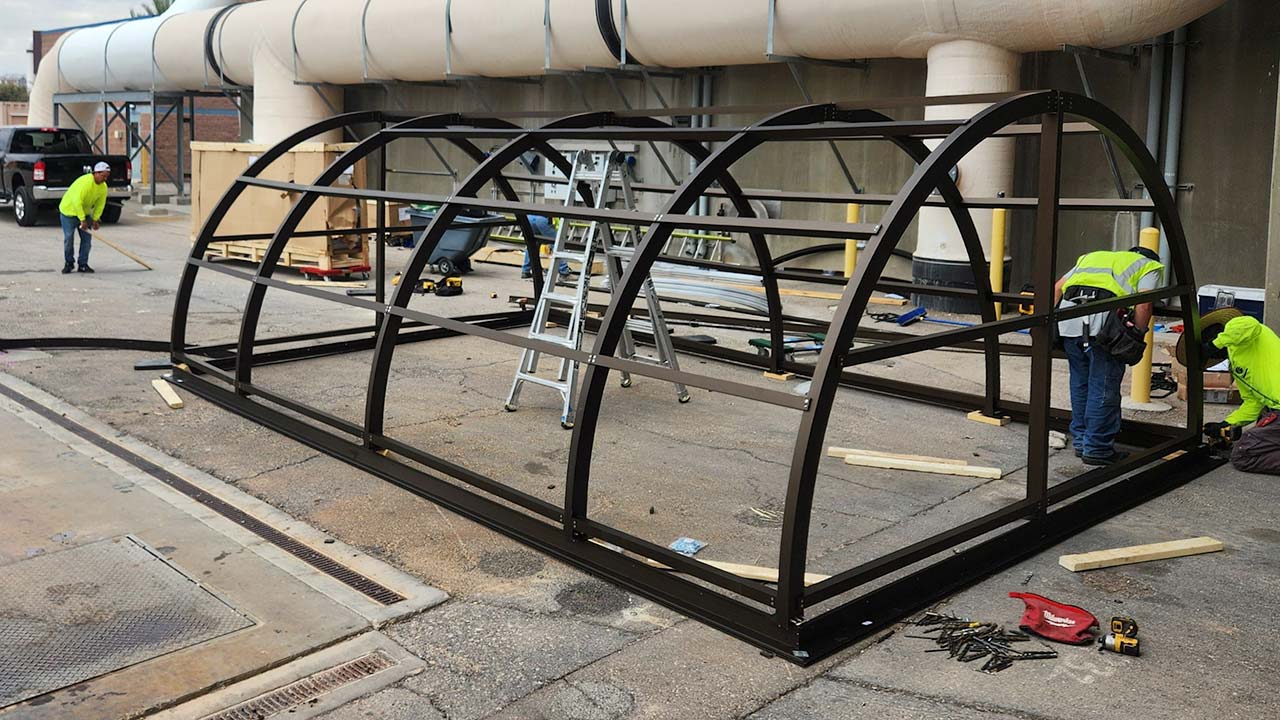

Workers in neon vests construct a large metal barrel vault skylight frame with arched supports on a concrete surface. A ladder and tools are scattered nearby, indicating active construction.

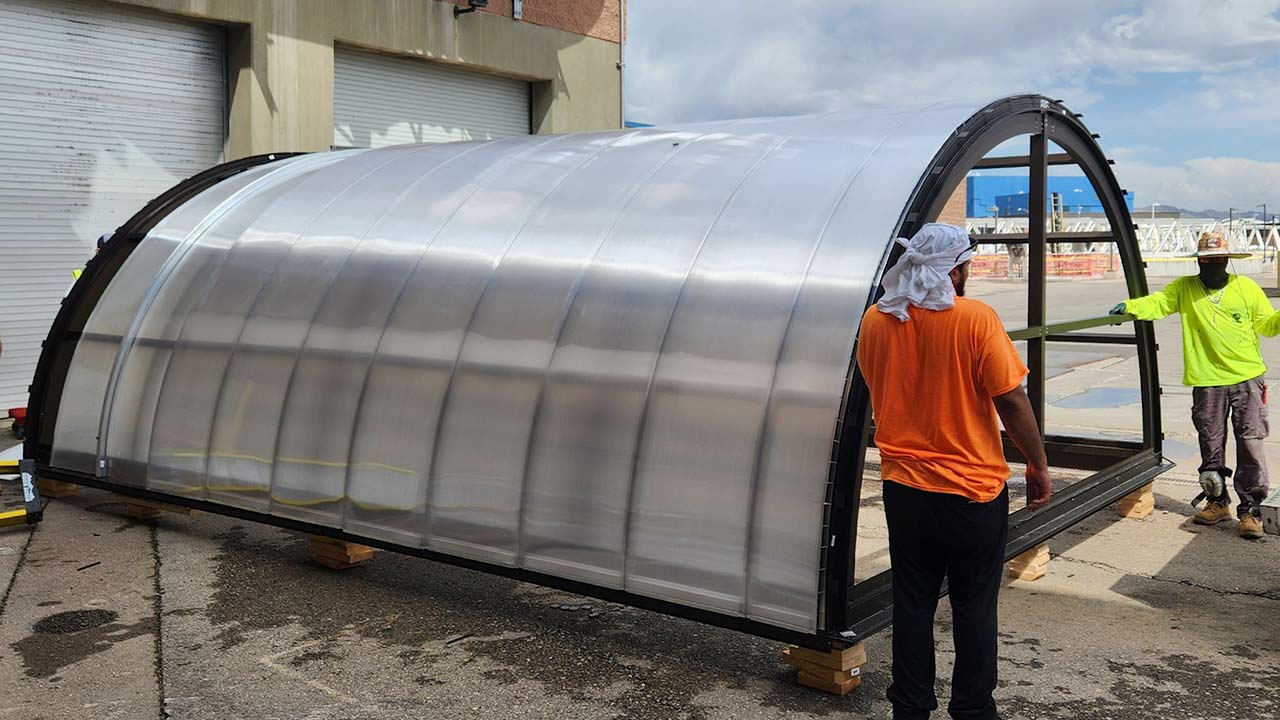

Two workers, one in an orange shirt and the other in neon green, stand beside a large, transparent barrel vault skylight structure outdoors on a sunny day.

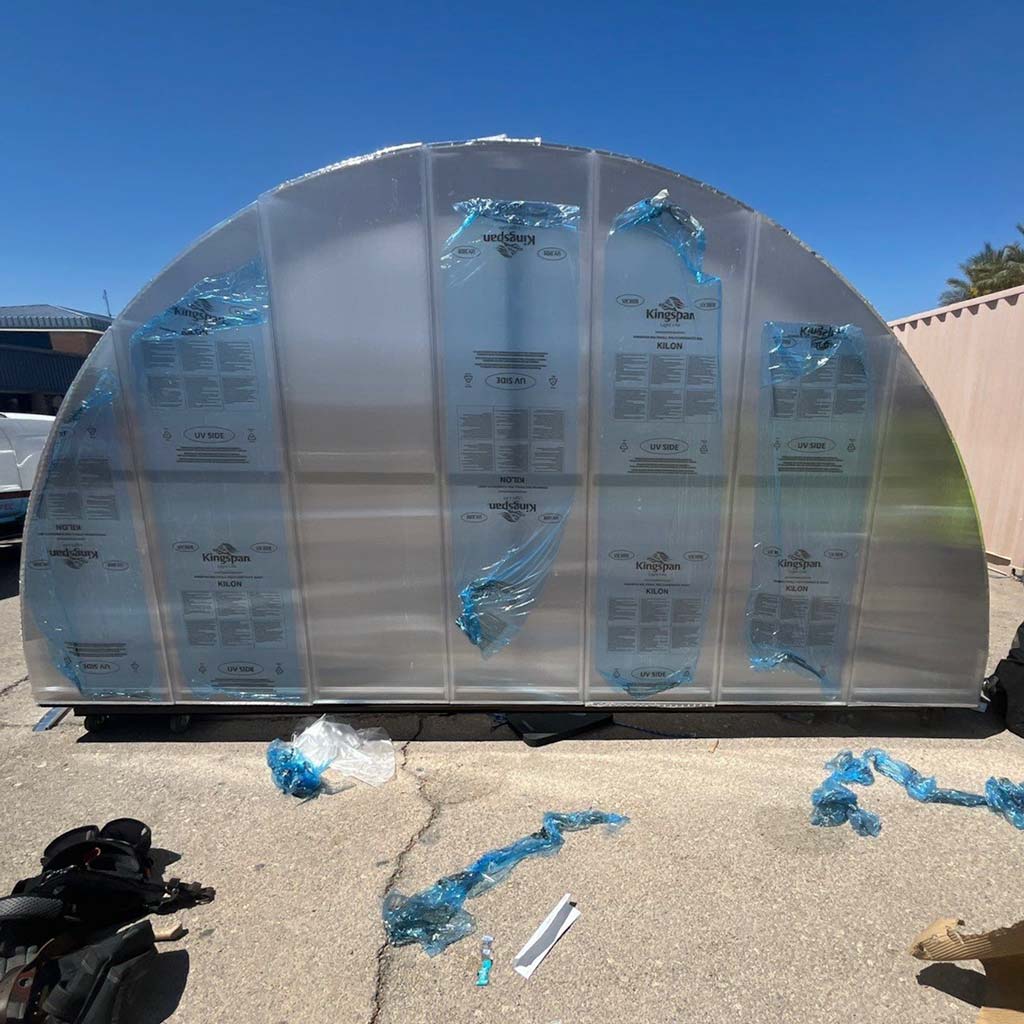

Semi-transparent polycarvonate panels partially covered with protective film are assembled in a backyard under a clear blue sky. Discarded film and tools lie on the ground.

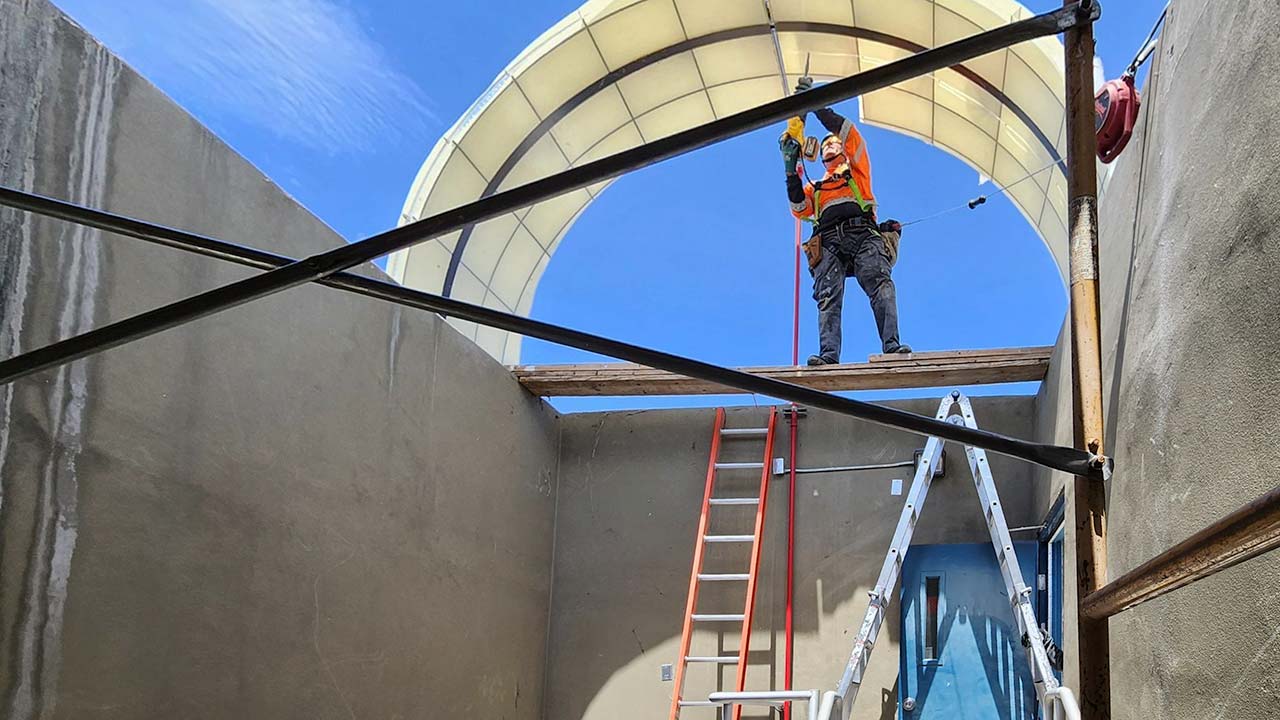

A construction worker in an orange vest and hard hat stands on scaffolding removingfiberglass skylight panels, surrounded by ladders and blue sky, suggesting focus and safety.

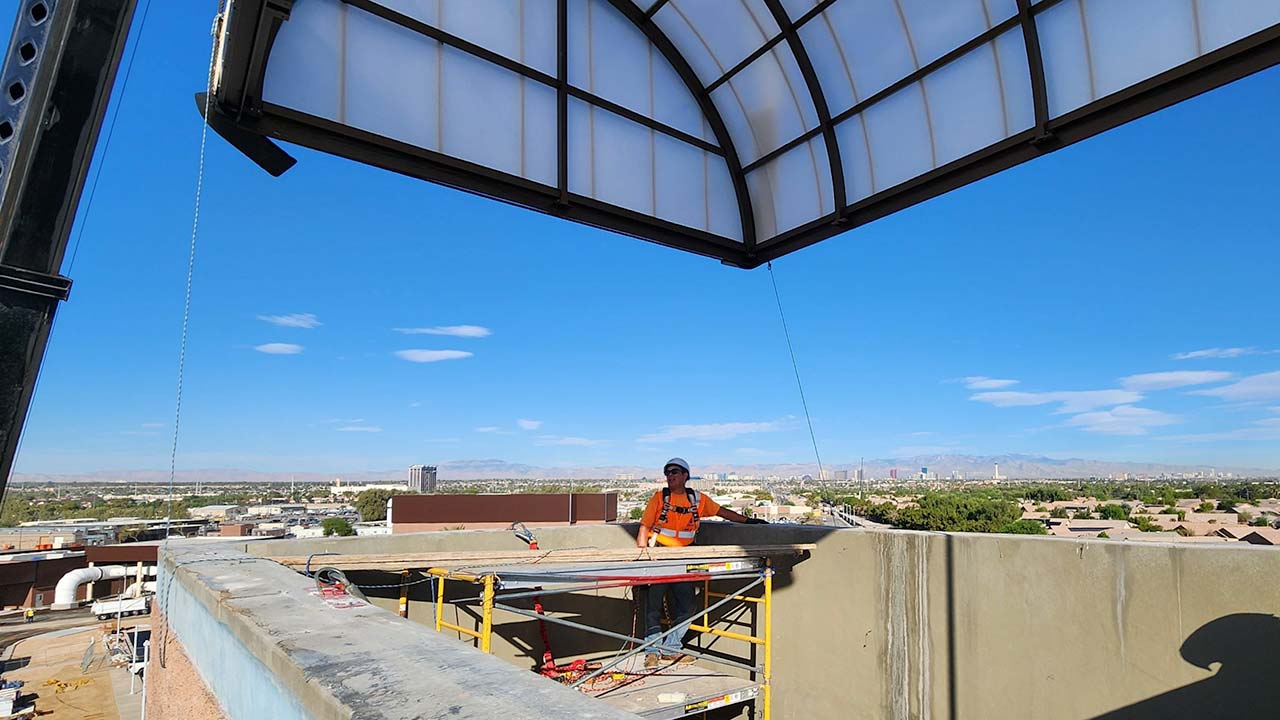

A construction worker in a safety vest stands on a rooftop scaffold as a crane llowers the new skylight against a clear blue sky, overlooking a city skyline.

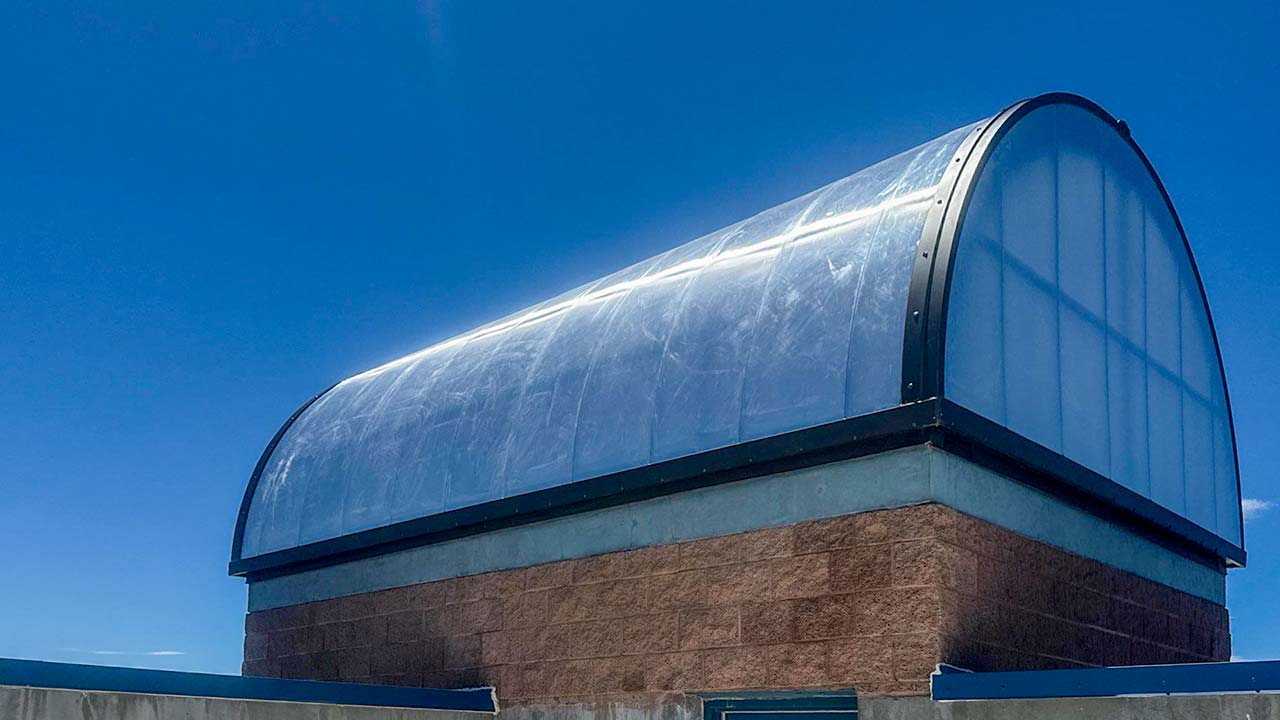

A barrel vault skylight with translucent panels sits atop a brick structure against a clear blue sky. The scene conveys a sense of tranquility.

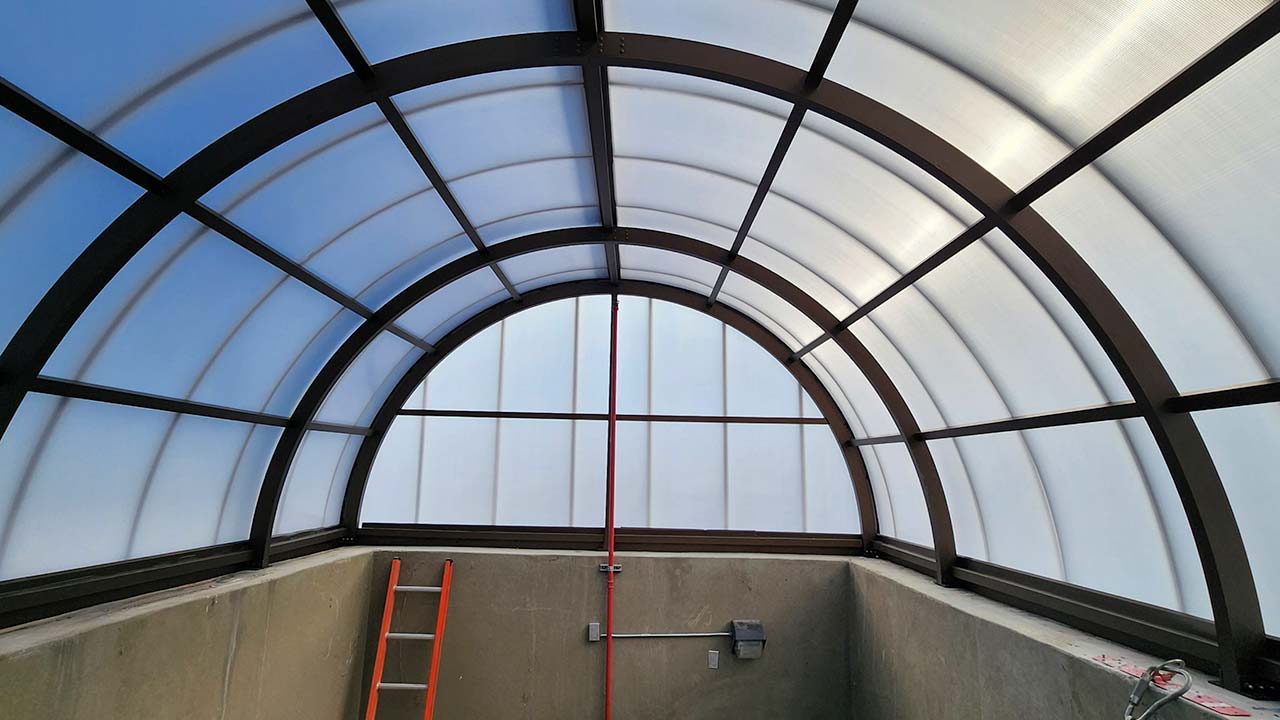

Interior of a polycarbonate barrel vault skylight with metal framework, creating a bright and airy space. An orange ladder rests against a gray concrete wall.

Product used:

  • Kingspan L+A
  • Unit Description: (1) Barrel Vault Skylight.
  • Size: 12ft (144.00in) Wide x 20ft (240.00in) Long odc.
  • Radius: 6ft.
  • Finish: CA5 Clear Hardcoat Anodized 215-R1.
  • Glazing: Quadwall 10 mm DG Pentaglas Standard Color/10 mm SG Pentaglas Standard Color 2.75″ thick.

Quadwall RST – Removable Skin Technology

  • REPLACE exterior glazing panel without exposing the building’s interior.
  • EXTEND building envelope longevity. The interior panel is always shielded.
  • RAINSCREEN PRINCIPLE – Equilibrium of air pressure between the outside and inside of the “rainscreen” prevents water penetration into the building itself.
  • ENERGY EFFICIENT – Provides the best ratio of insulation (U-Factor) to visual transmittance (VT%).
  • HIGH PERFORMANCE DAYLIGHTING – Glare-free diffused daylighting.
