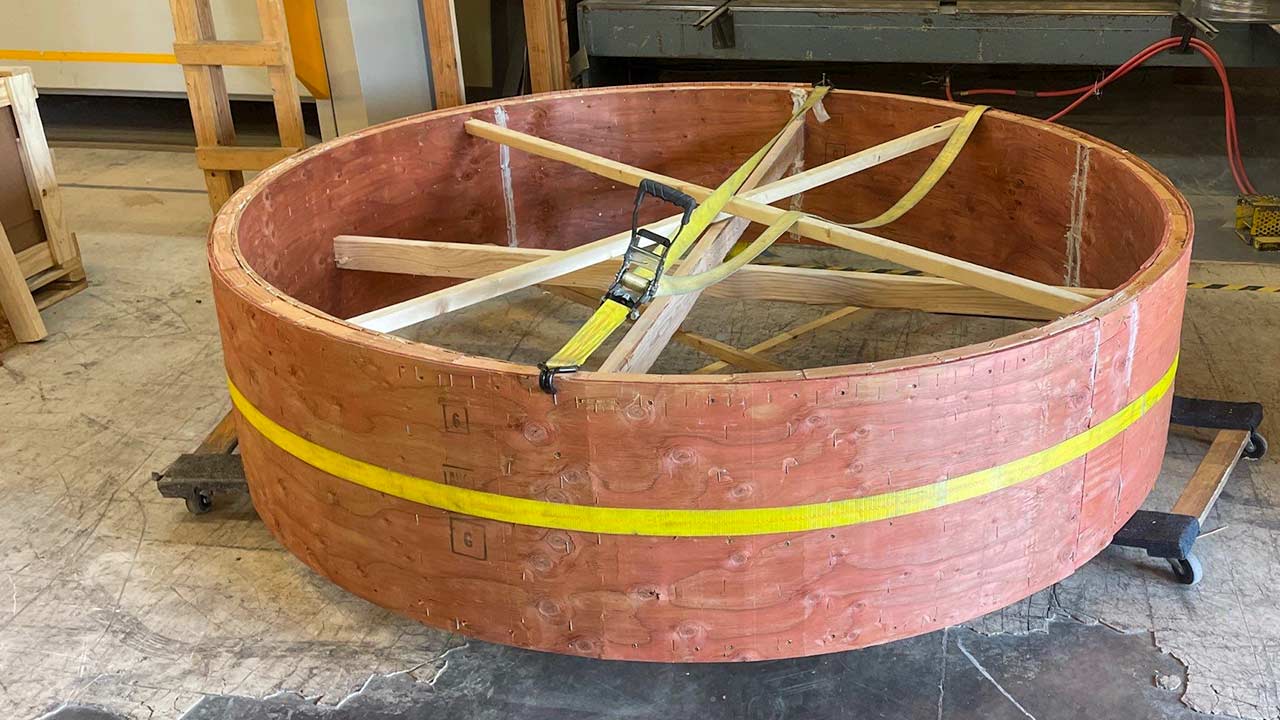

This project begins with the constructiion of the approximately eigfht foot diameter by approximately three foot high skylight curb.

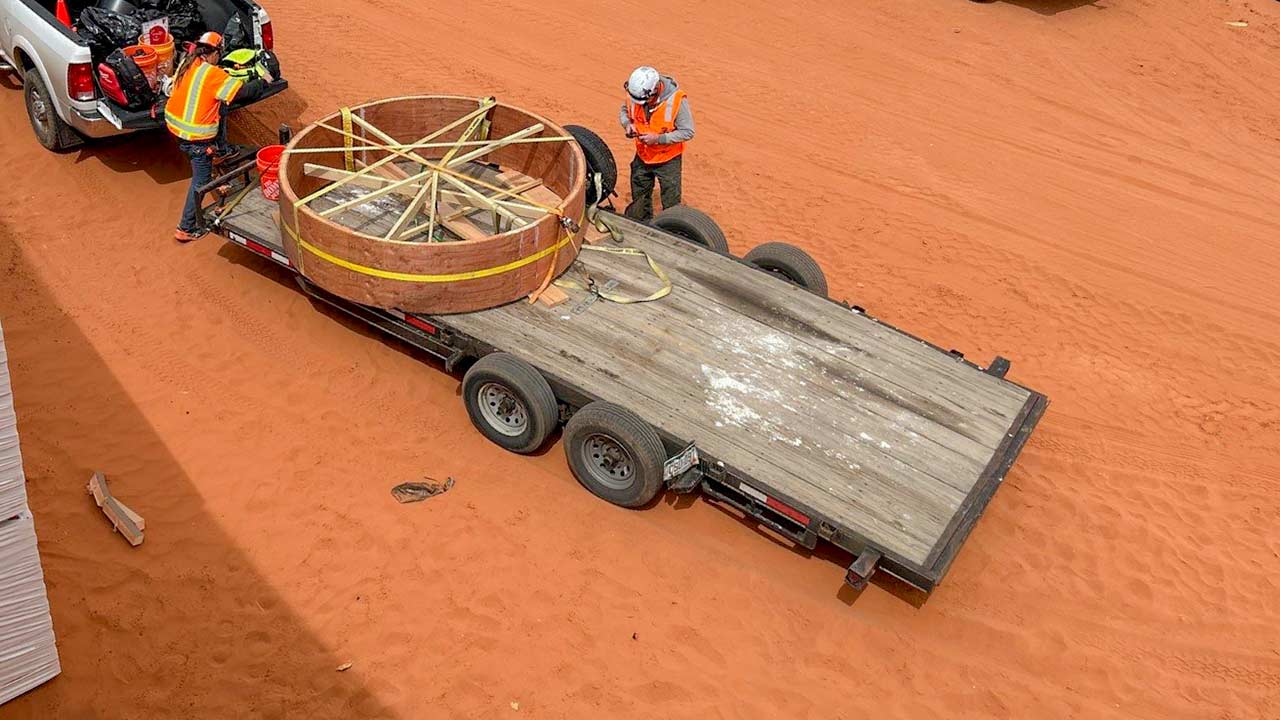

Once the curb was constructed it was put on a trailer and driven 500 miles to the job site for the new USU Monument Valley Academic Building. The curb was lifted to the roof and attached over the opeing provided by the GC, Big-D Construction Corp,

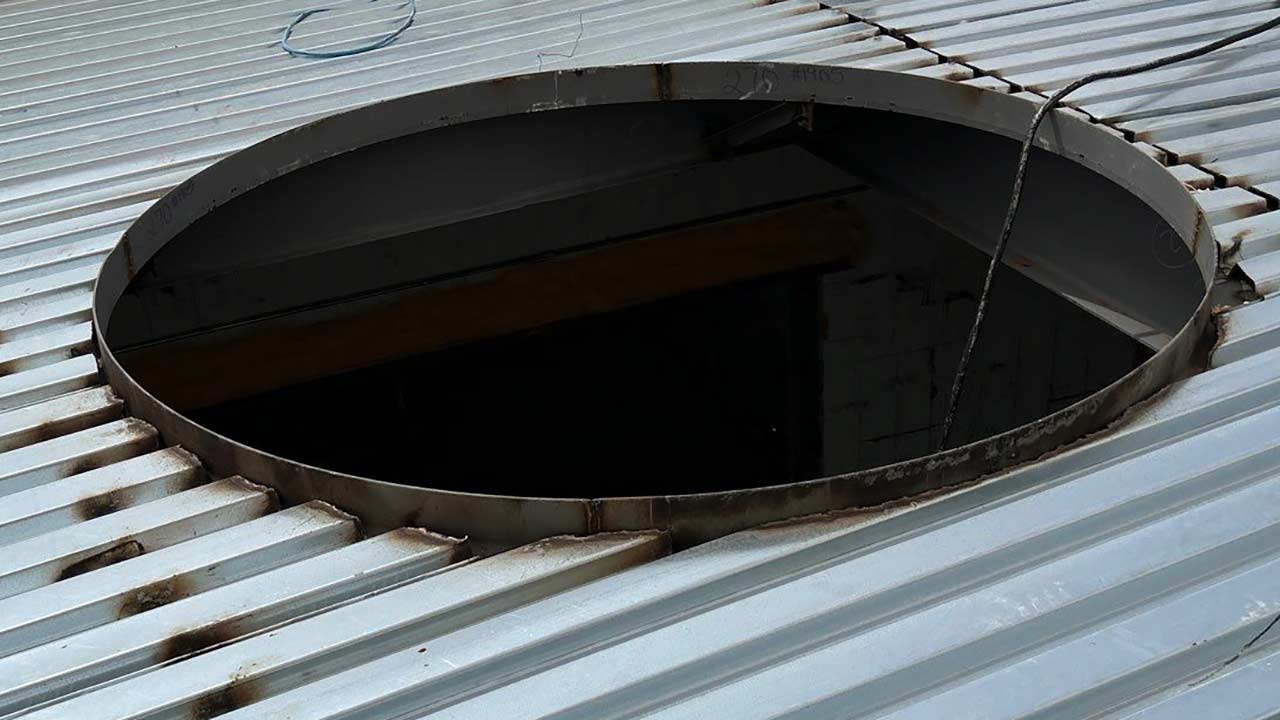

A circular opening cut into a metal roof.

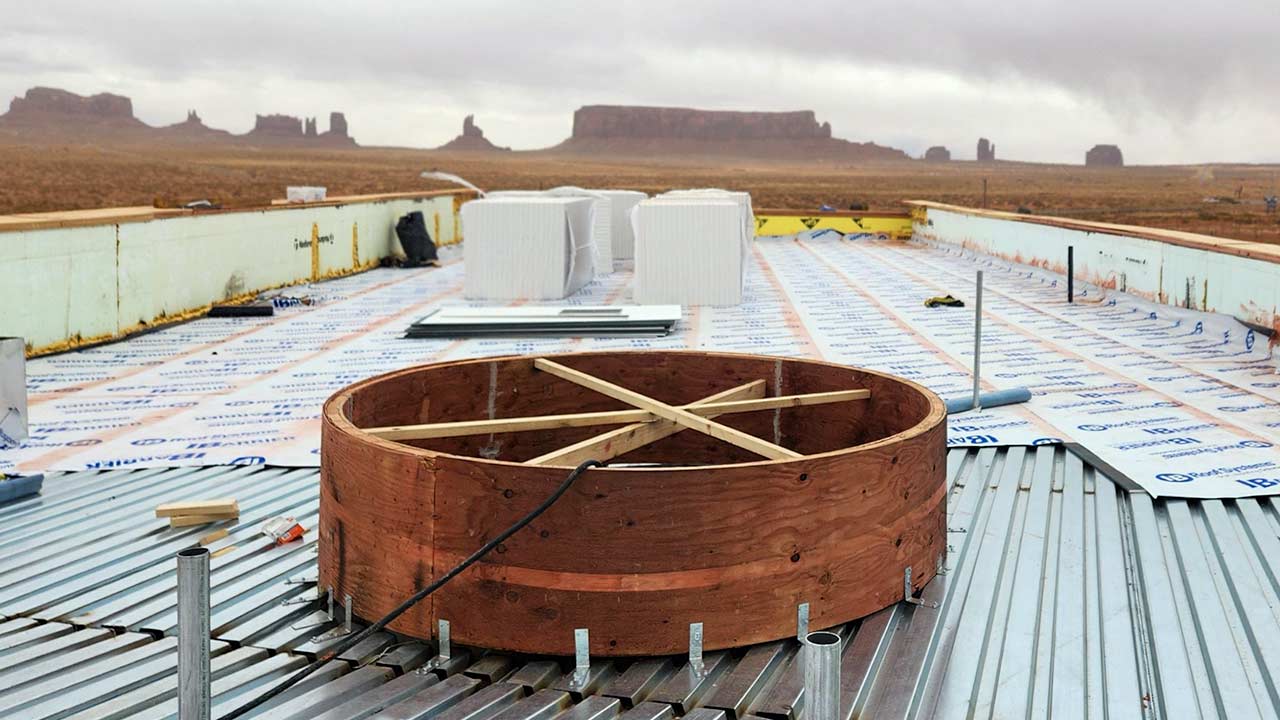

A rooftop under construction with insulation sheets, HVAC units, and a large wooden circular skylight curb , set against a desert landscape with distant mesas. A rooftop under construction with insulation sheets, HVAC units, and a large wooden circular frame, set against a desert landscape with distant mesas.

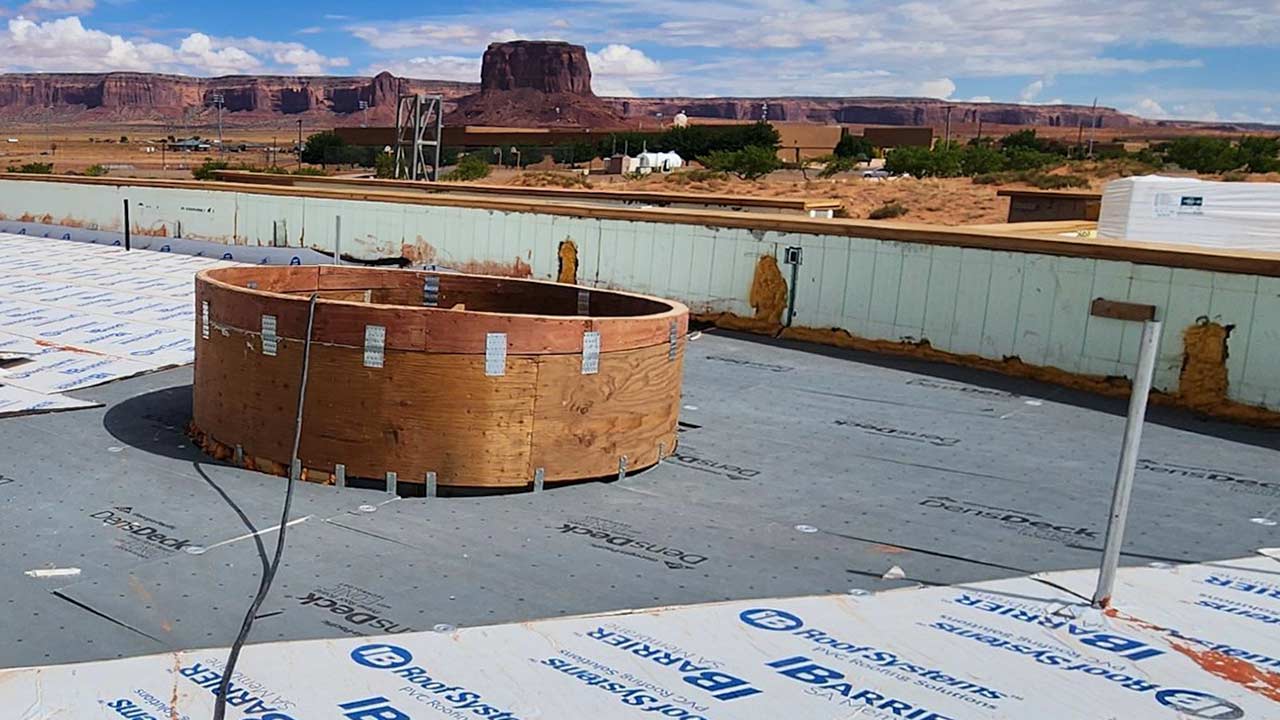

A rooftop under construction with insulation sheets, and a large wooden circular skylight curb , set against a desert landscape with distant mesas.

An extension is added to the top of the curb, slanted to provide drainage.

A metal fraome, constructed by Kingspan Light + Air and shipped to the site.It was then lifted to the roof and insalled over the curb.

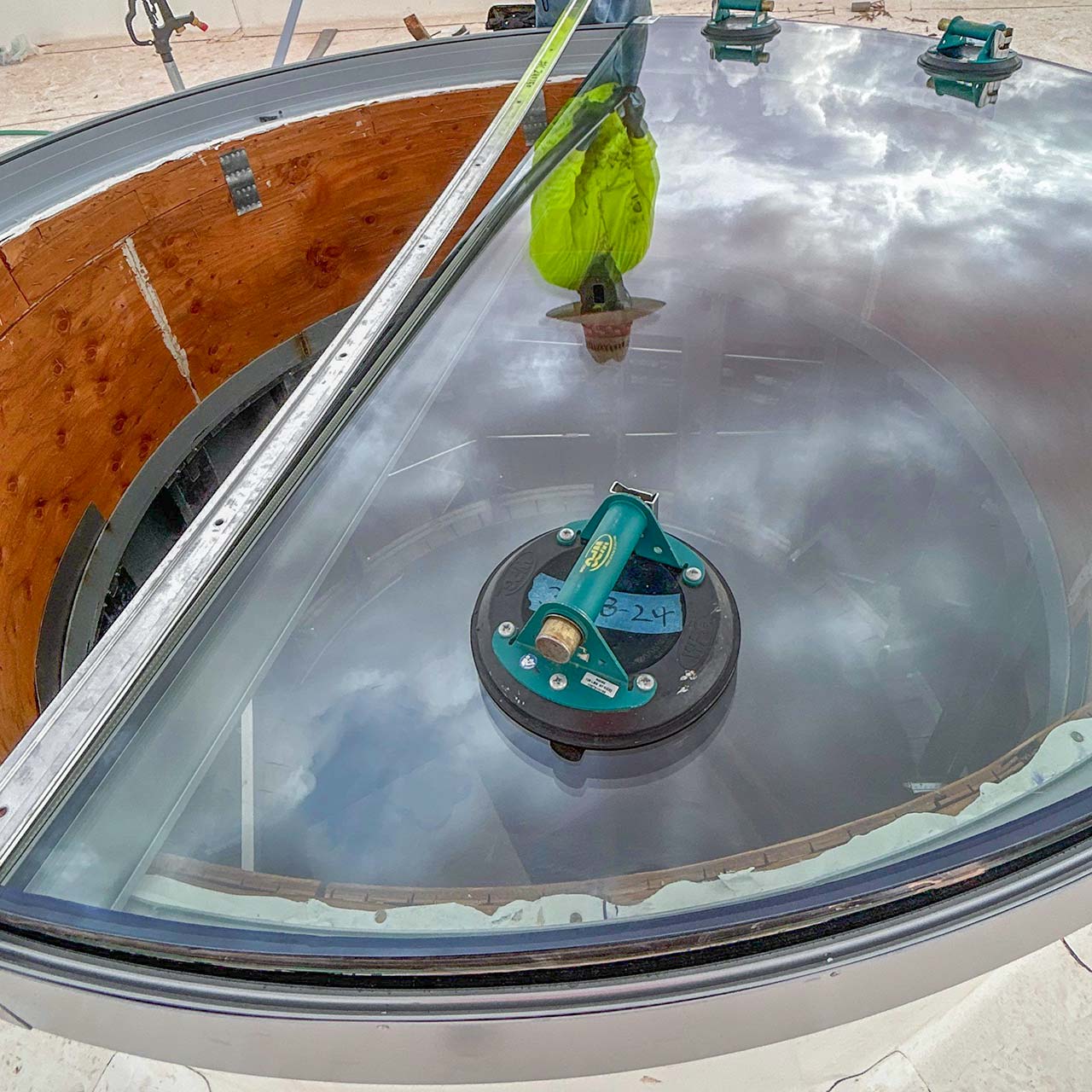

Next, the two pieces of glass were installed in the frame.

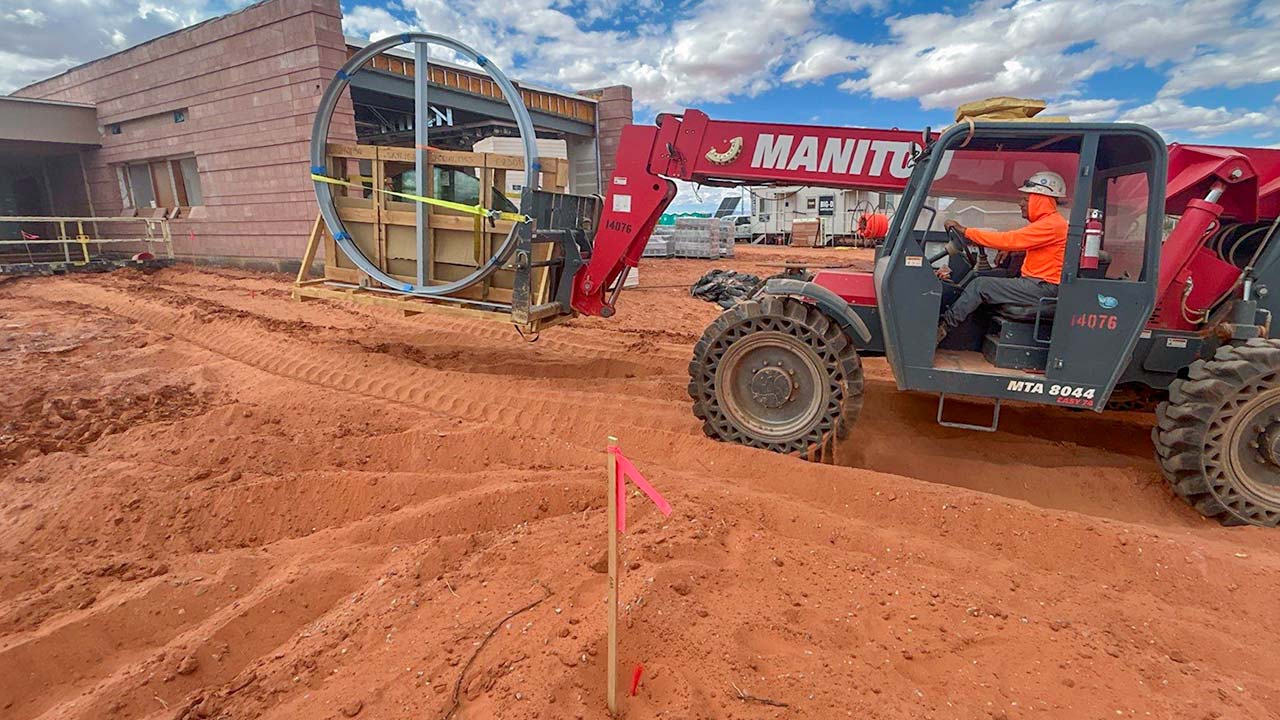

A red telescopic handler lifts a circular metal frame on a construction site. The ground is reddish-brown soil, with pink flags marking areas. The sky is partly cloudy.

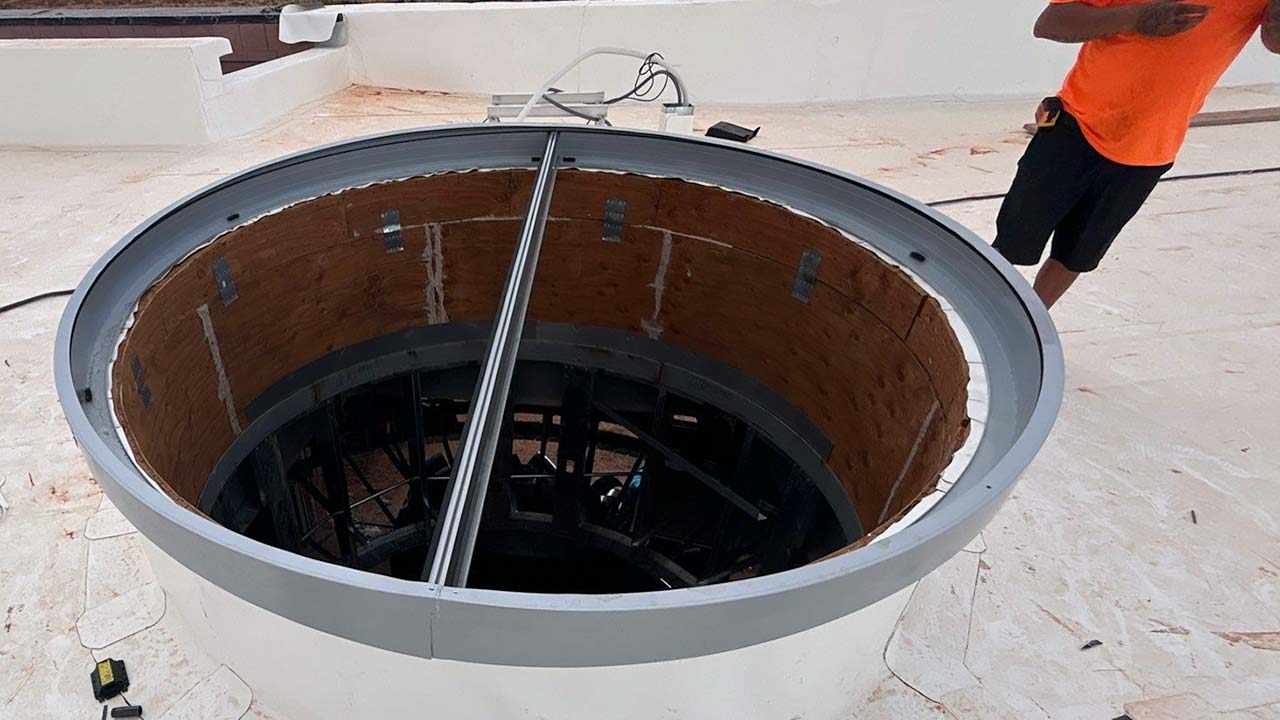

Rooftop installation of a large, circular open shaft with metal and wooden lining. A person in an orange shirt stands nearby, assessing the setup.
A round glass skylight structure with a reflective surface showing clouds, surrounded by wooden and metallic components. Tools and a green clamp are visible on top.

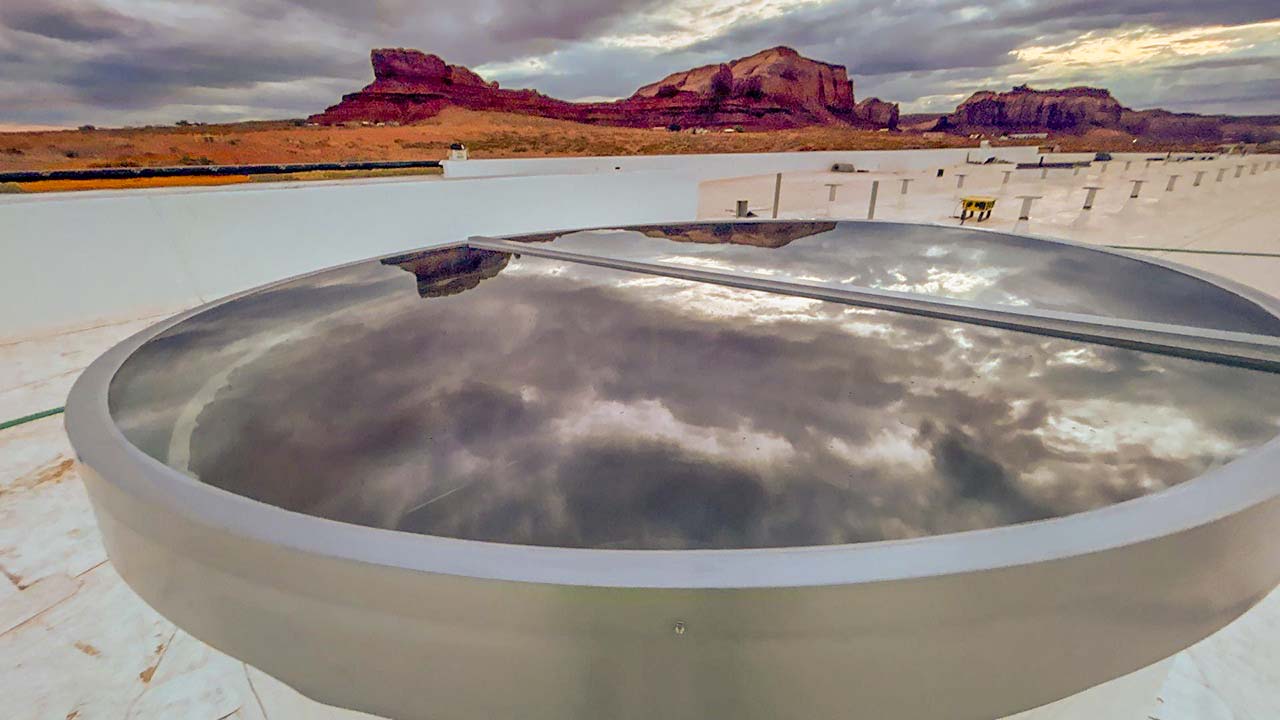

A circular reflective skylight dish on a rooftop mirrors a cloudy sky, set against a dramatic desert landscape with Monument Valley red rock formations under a moody atmosphere.

Product used:

Kingspan Light + Air

  • Unit Description: Circular Skylight w/ Thermally Enhanced Perimeter Frame.
  • Size: 7.33ft (87.96in) Diameter Outside Curb Dimension.
  • Layout: 1 Bay(s) Upslope, 2 Bay(s) per Length.
  • Frame Finish: AAMA2604.
  • Approx. Glazing Square Footage: 58
  • Glazing: Solarban® 60 Clear.

ADDITIONAL INFORMATION:

KlearSky™ Metal Framed Skylights

KlearSky™
Data Sheet

Solarban® 60
Data Sheet
