Embassy Suites Cincinnati RiverCenter Inspection

Quote Request1-866-759-7732

Inspection/Certification Nationwide — It all starts with a simple phone call. 1-866-759-7732

Skylight Inspection/Certification

  • An onsite skylight survey and inspection will be made by Skylight Specialists, Inc. on 12/10/2024

1. Skylight Manufacturer: Unknown

(12) Cluster Pyramids, Approx. 52ft x 40ft total (13ft x 13ft each pyramid)
(1) Barrel Vault, Approx. 30ft x 6ft
(1) Barrel Vault, Approx 32ft x 8.5tf

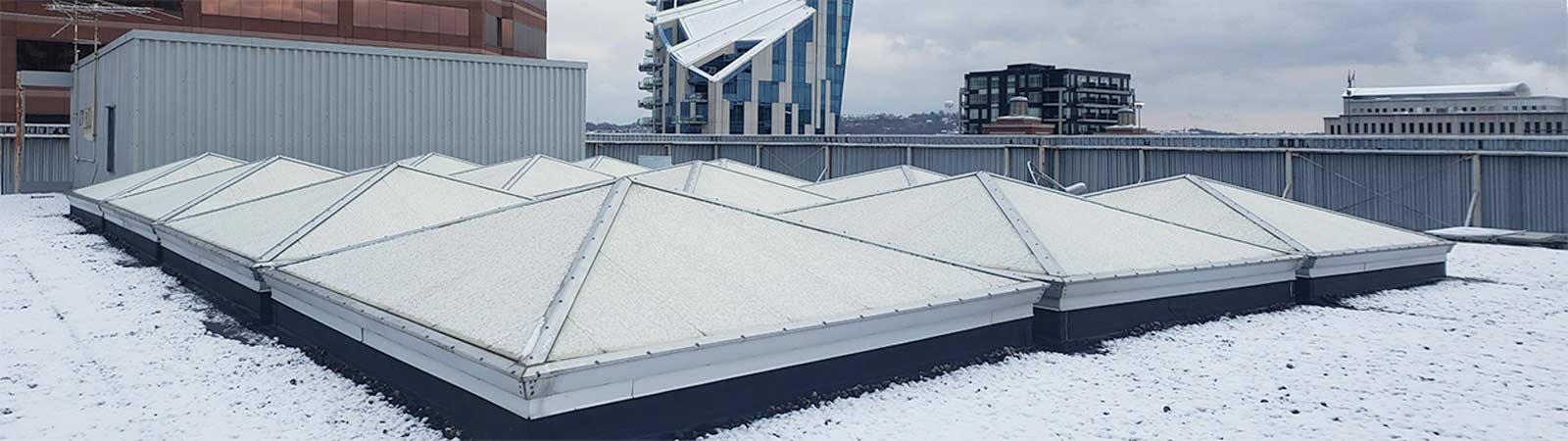

Snow-covered rooftop with a cluster of , pyramid skylights. A gray, overcast sky and urban buildings in the background convey a cold, wintry atmosphere.

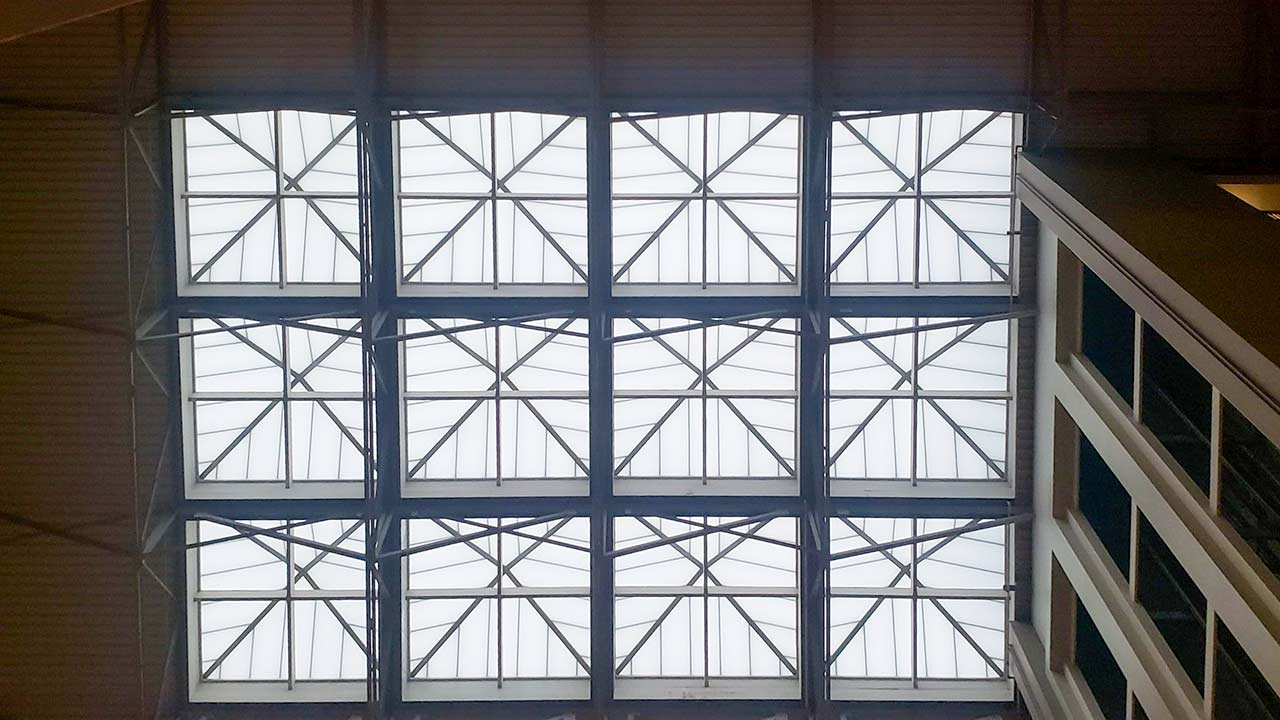

Cluster of twelve, pyramid skylight with geometric grid pattern viewed from below in an indoor setting, emitting soft, diffused light. The tone is calm and structured.
  • Glazing: Multi-cell polycarbonate, white, Dual Glazed, fall protected, yellowed and starting to show signs of its age.
  • Structure: Adequate spacing and size structural aluminum frame.
  • Anchors: Adequate anchor size and count around perimeter.
  • Curbs: Adequate height.
  • Flashing: Matches existing roof and appears to be in good condition. No leaks reported.

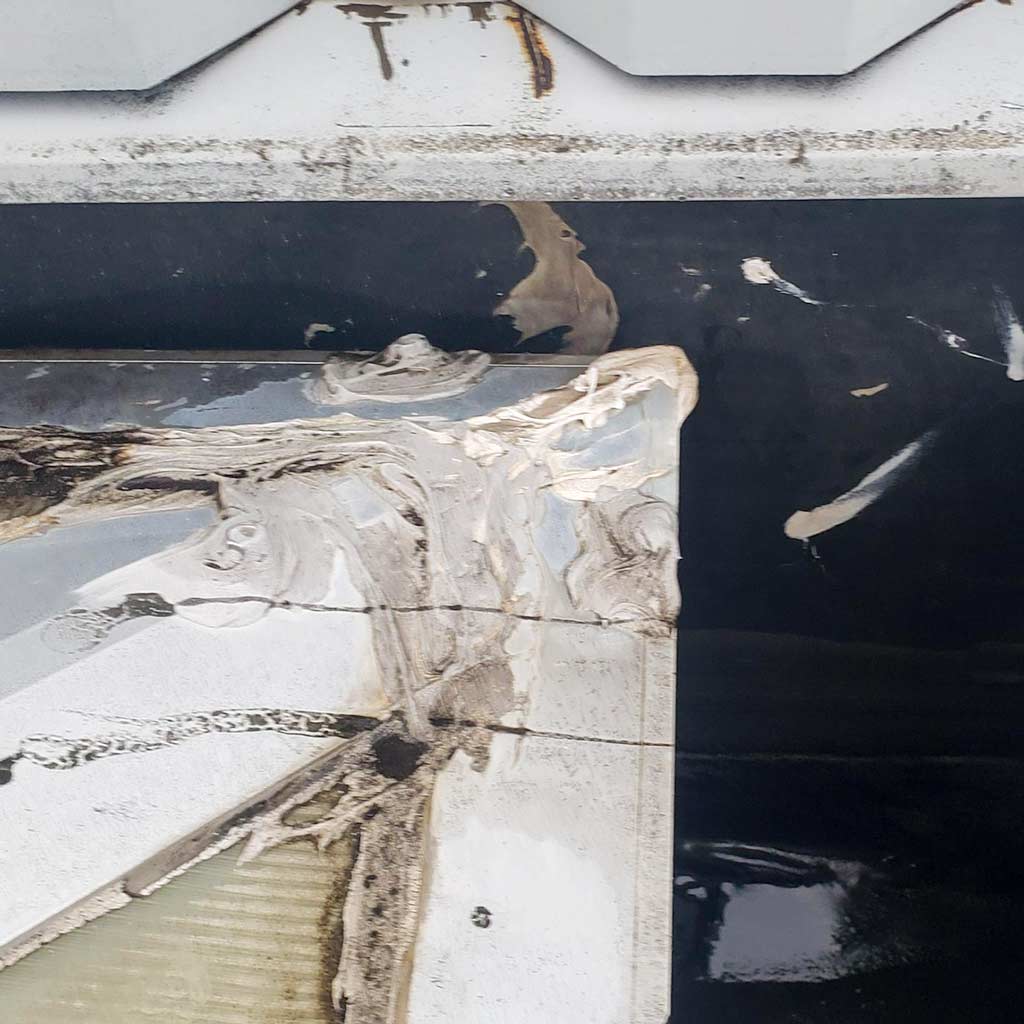

Close-up of a skylight corner with peeling caulking and patches of dark and light areas. The texture suggests weathering and decay, evoking neglect.

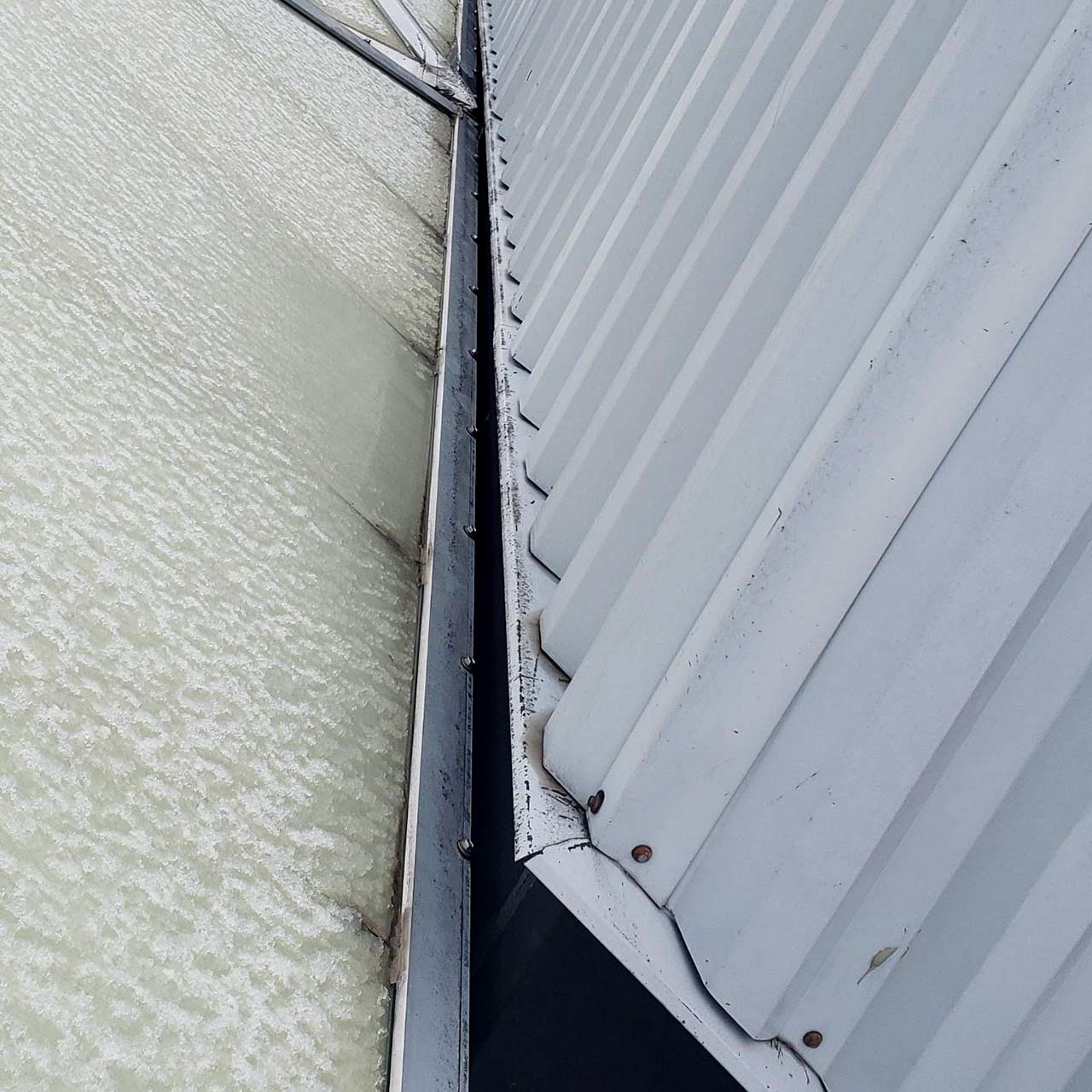

A pyramid skylight showing the narrow gap next to a wall.
  • Weep system: Adequate and Functional
  • Drainage system: Adequate and Functional, showing signs of water infiltration with the water being diverted to the weep system and exited skylight
  • Sealants and caulking: Showing its age, and multiple applications needs removed, cleaned and replaced
  • Evaluation:Rating: (1-10 scale) 3.5
  • Expected Life Span: 1-3 years.
  • Evaluation: Minor leaks appear on interior of building which is common in systems this old. Structural integrity is the main concern at this point.

Requested access to inspect the two barrel vault skylights and was told no access was available, was not able to inspect

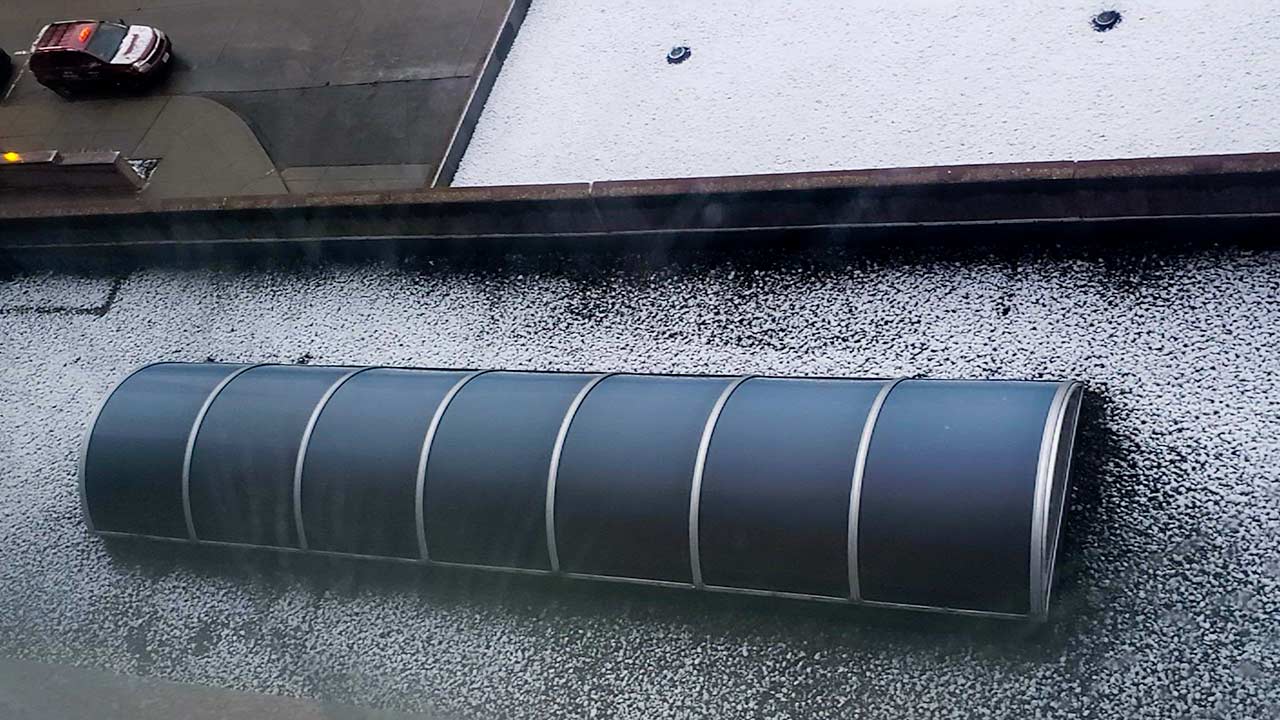

A barrel vault skylight on a hotel roof see from above.

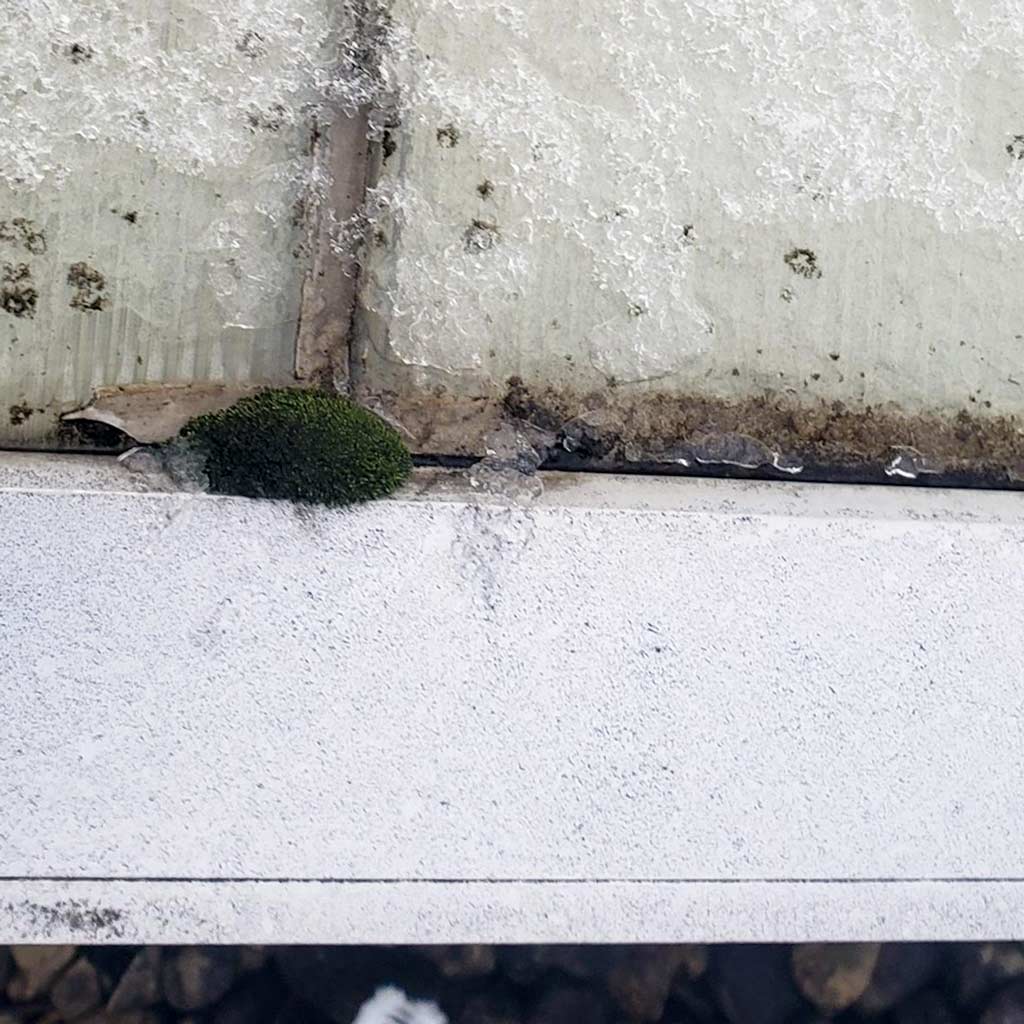

Close-up of a skylight panel edge with a small patch of green moss nestled between seams. Ice and snow partially cover the surface, creating a wintery feel.
Moss!
Close-up of a skylight corner with peeling caulking and patches of dark and light areas. The texture suggests weathering and decay, evoking neglect.
Ineffective leak repair.

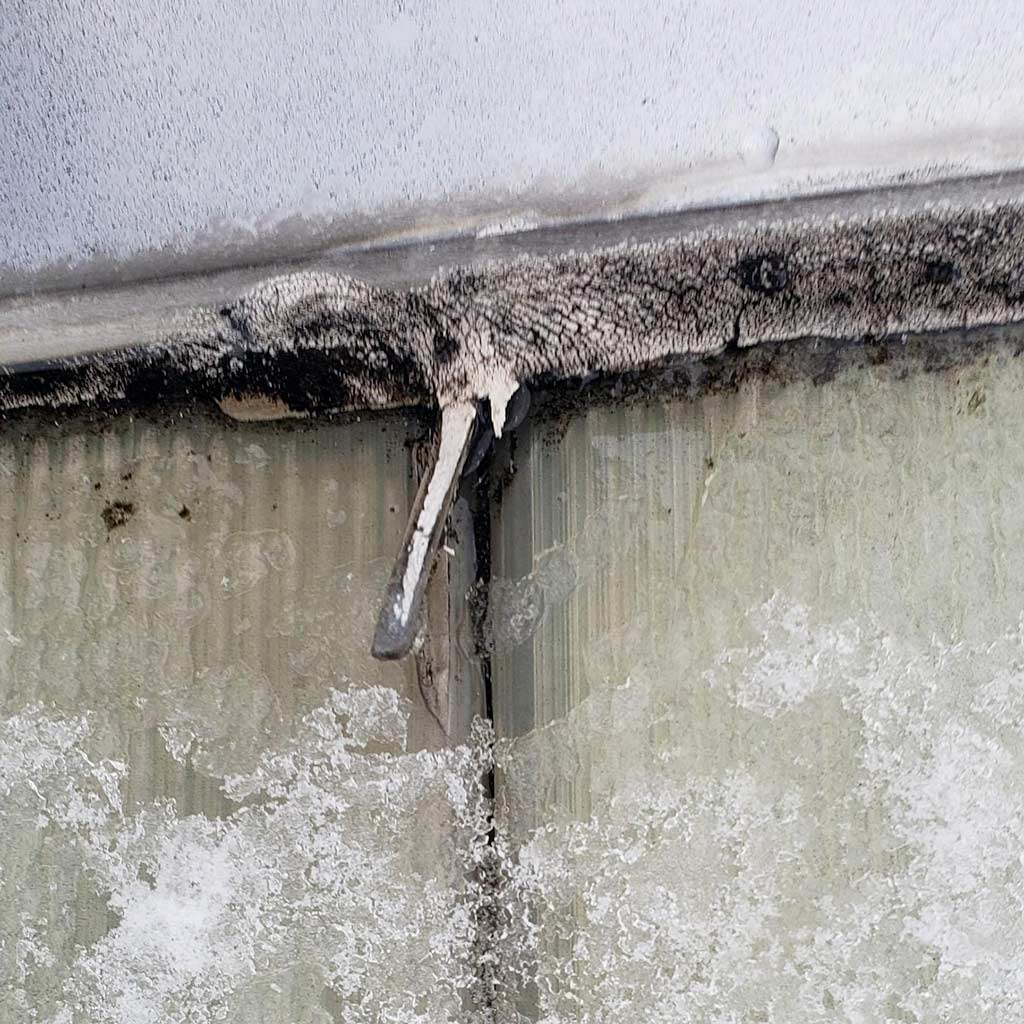

A small fish, piece of caulking hangs from a metal surface covered in frost. The texture is rough, with visible ice crystals, conveying a cold and harsh atmosphere.
Ineffective leak repair.

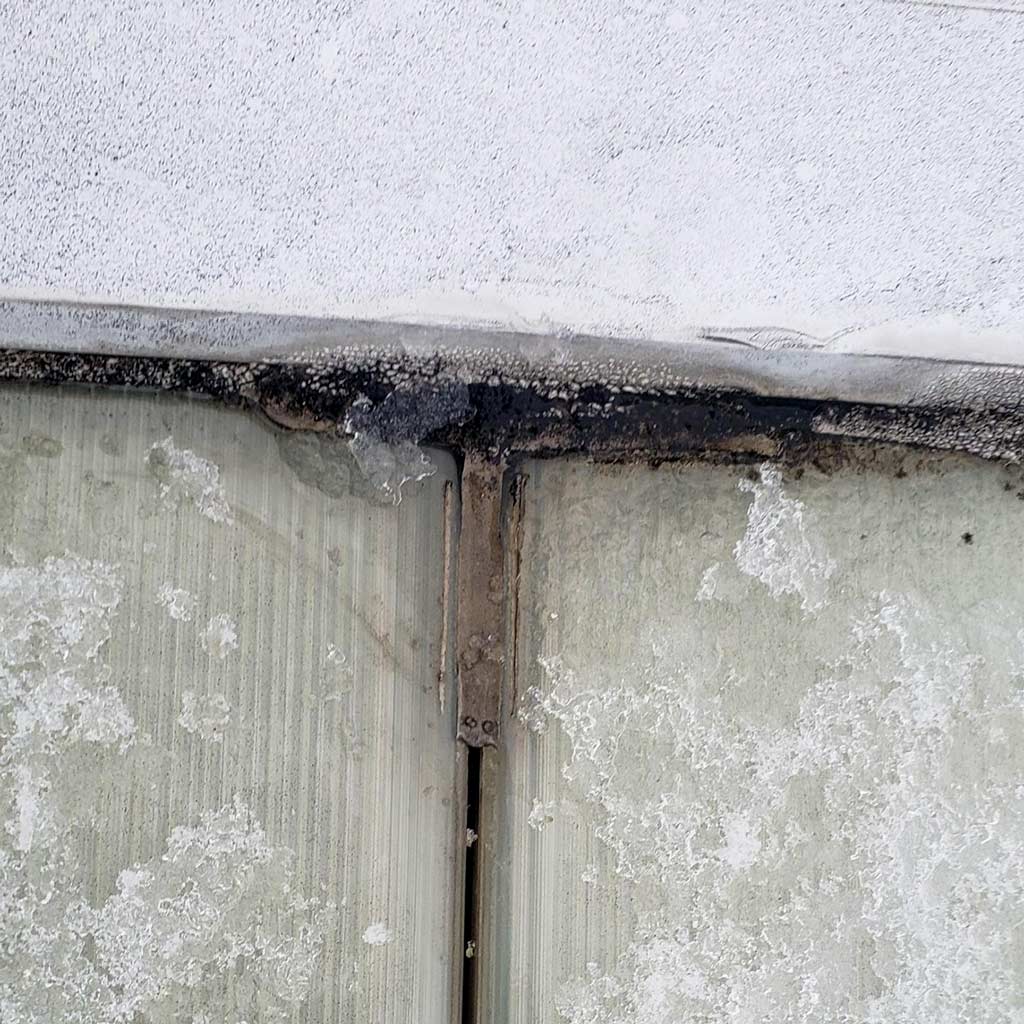

Close-up of a frosted, snow-covered skylight frame and another leark source with dark mold or dirt along the edge, highlighting weather damage and decay.
Ineffective leak repair.
  1. Priority 1 – Immediate (must be done; leaks, life safety etc.)
    a. Replace glazing on skylights and slope gutter to prevent further
    leaking and damage
    b. Reinspect other skylights when access can be provided
  2. Priority 2 – Short Term (should be done within the next year or two).
    Barrel vault skylights should be inspected.
  3. Priority 3 – Long term (within 5 years or more)
    a. Reinspect
