MAGS BAR
PARTS AND PRICING

Standard Aluminum Finish is Class 1 Black Anodized.
Custom colors are available with an upcharge.

Now parts are
pre-drilled!

Free phone consultation to discuss options. 1-866-759-7732

04-PB PERIMETER BASE
$8.66/ft – FOB Denver

mags_bar_perimeter_part
  • Use on all perimeters for vertical or sloped glazing.
  • Also utilized at ridges and hips.
  • Includes installed rubber gasket.

03-IB INTERMEDIATE BASE
$5.33/ft – FOB Denver

mags_bar_parts_intermediate
  • Use for vertical applications (sloped or vertical wall) where glazing is on each side.
  • Includes installed rubber gaskets.

02-PC PRESSURE CAP
$3.48/ft – FOB Denver

mags_bar_parts_pressure_cap

  • Use on perimeter or intermediate base to cap glazing.
  • Includes installed rubber gaskets.

01-SC SNAP CAP
$2.85/ft – FOB Denver

mags_bar_parts_snap_cap
  • Use on Pressure Cap to cover fasteners and provide finished look.

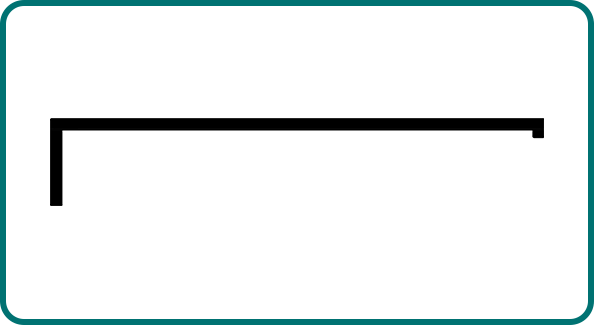

01-SFC SILL FLUSH CAP
$3.36/ft – FOB Denver

mags_bar_parts_purlin_flush_cap
  • Use only for sloped applications at perimeter sill of opening.

01-PFC PURLIN FLUSH CAP
$3.78/ft – FOB Denver

mags_bar_parts_purlin_flush_cap
  • Use for both vertical and sloped glazing applications where silicone cannot be used — such as acrylic or polycarbonate panels.

795-C Silicone – Cartridge 10.3 oz./ea FOB Denver

mags_bar_parts_795

795-S Silicone – Sausage 20 oz./ea FOB Denver

mags_bar_parts_795-S

SB-25-12 Setting Blocks FOB Denver

mags_bar_parts_setting_block
  • ¼” x 1” x 2”
  • $20.00 per 100

Free phone consultation to discuss options. 1-866-759-7732

Detailed information on all MAGS BAR projects on our site.
